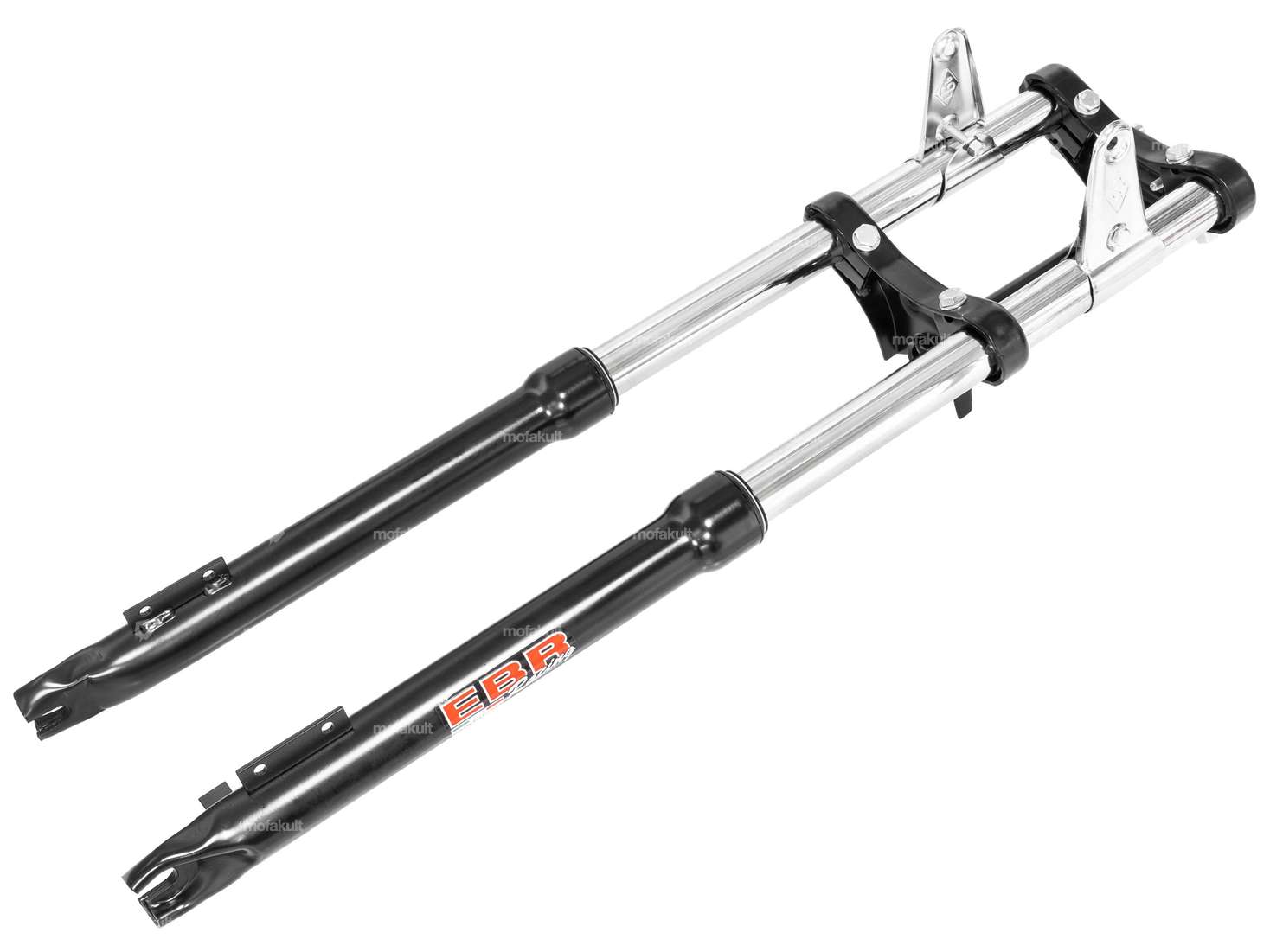

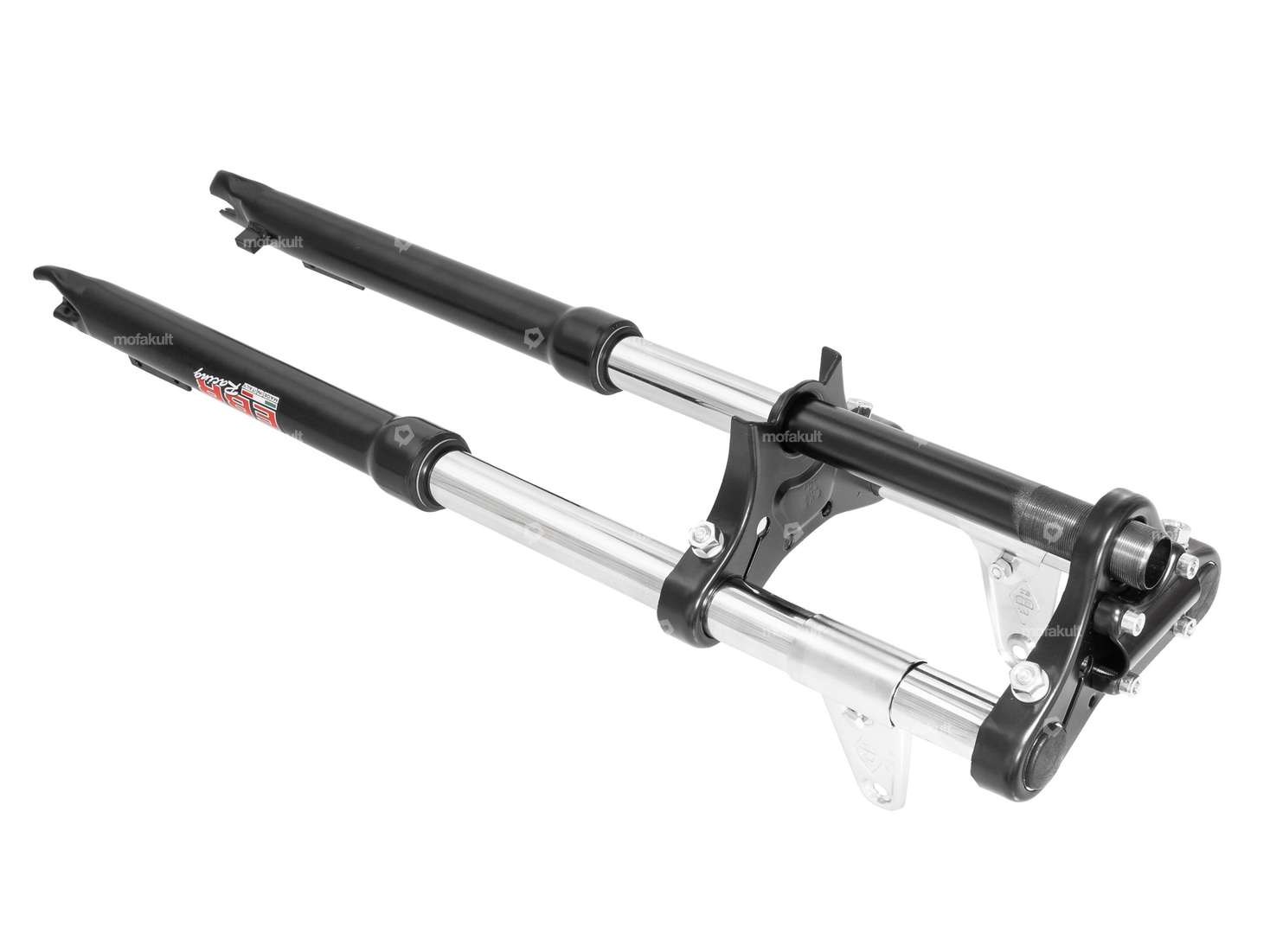

Reinforced, mechanical telescopic fork suitable for various Puch mopeds (Puch Maxi S / N, Puch X30 Sport / X30 Velux, Puch Supermaxi LG1 / LG2).
Bolts for attaching the brake anchor plate are located on both sides 4 cm above the center of the wheel axle.

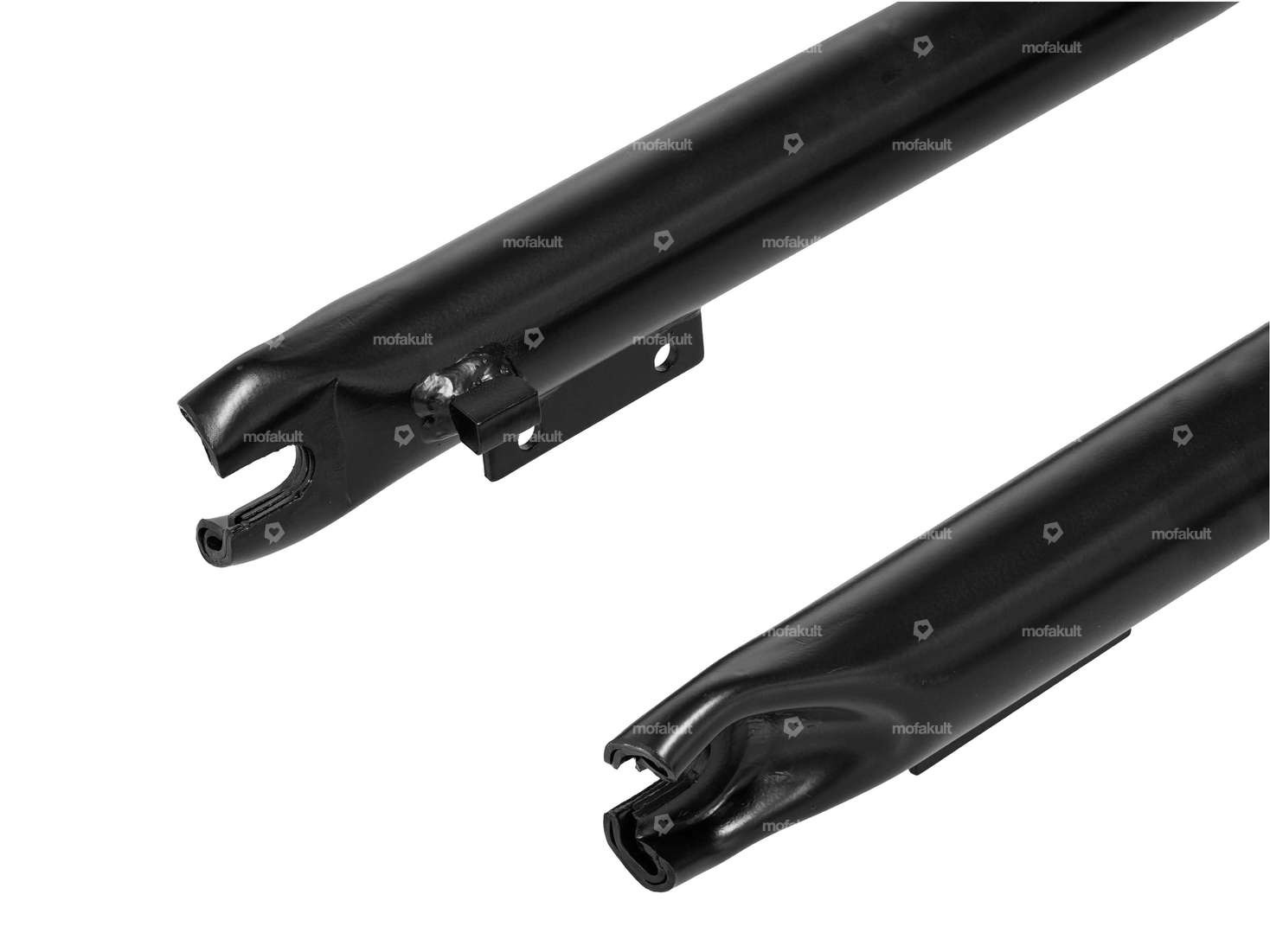

Two lugs are provided for attaching the mudguard.
Internal diameter of the head tube (for stem mounting): 22 mm
Stanchion tube diameter: 30 mm
Total length: 690 mm
Fork bridge - center wheel axle: 500 mm
Length center wheel axle to lower edge of lower fork bridge: 485 mm
Head tube length: 180 mm (55 mm thread length)
Head tube thread: M26x1
Hole spacing for lugs: 36 mm
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | Yes |
| Spar end distance (center-center) | 130 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Ø head tube inside | 22 mm |
| Ø outer head tube | 26.2 mm |
| Ø spars | 30 mm |
| Head tube length | 180 mm |
| Total length | 695 mm |
| Thread length | 57 mm |
| Fork bridge - center wheel axle | 480 mm |
| Distance brake cam to wheel axle center-center | 38 mm |
Suitable for the following models
| Puch |
