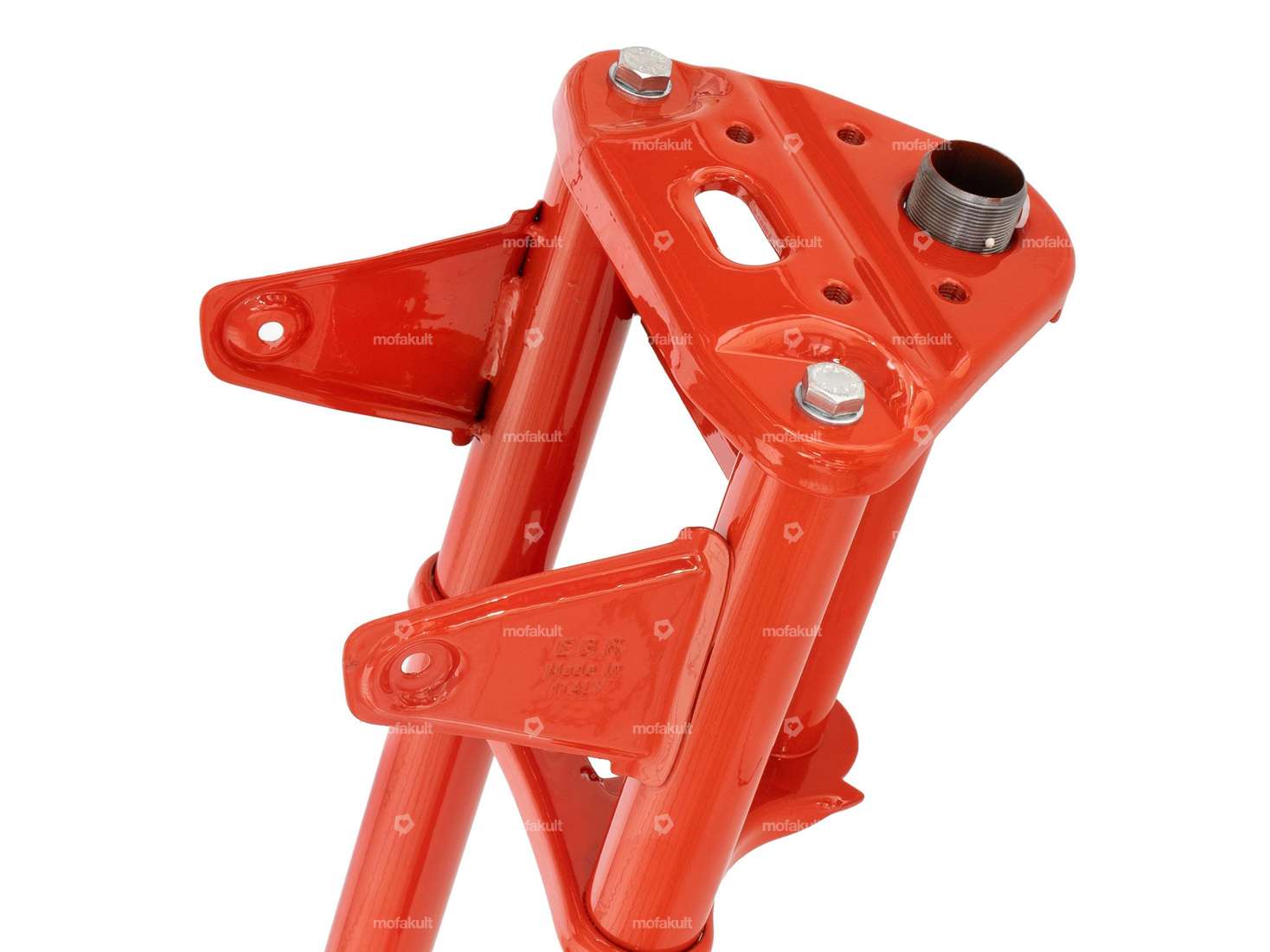

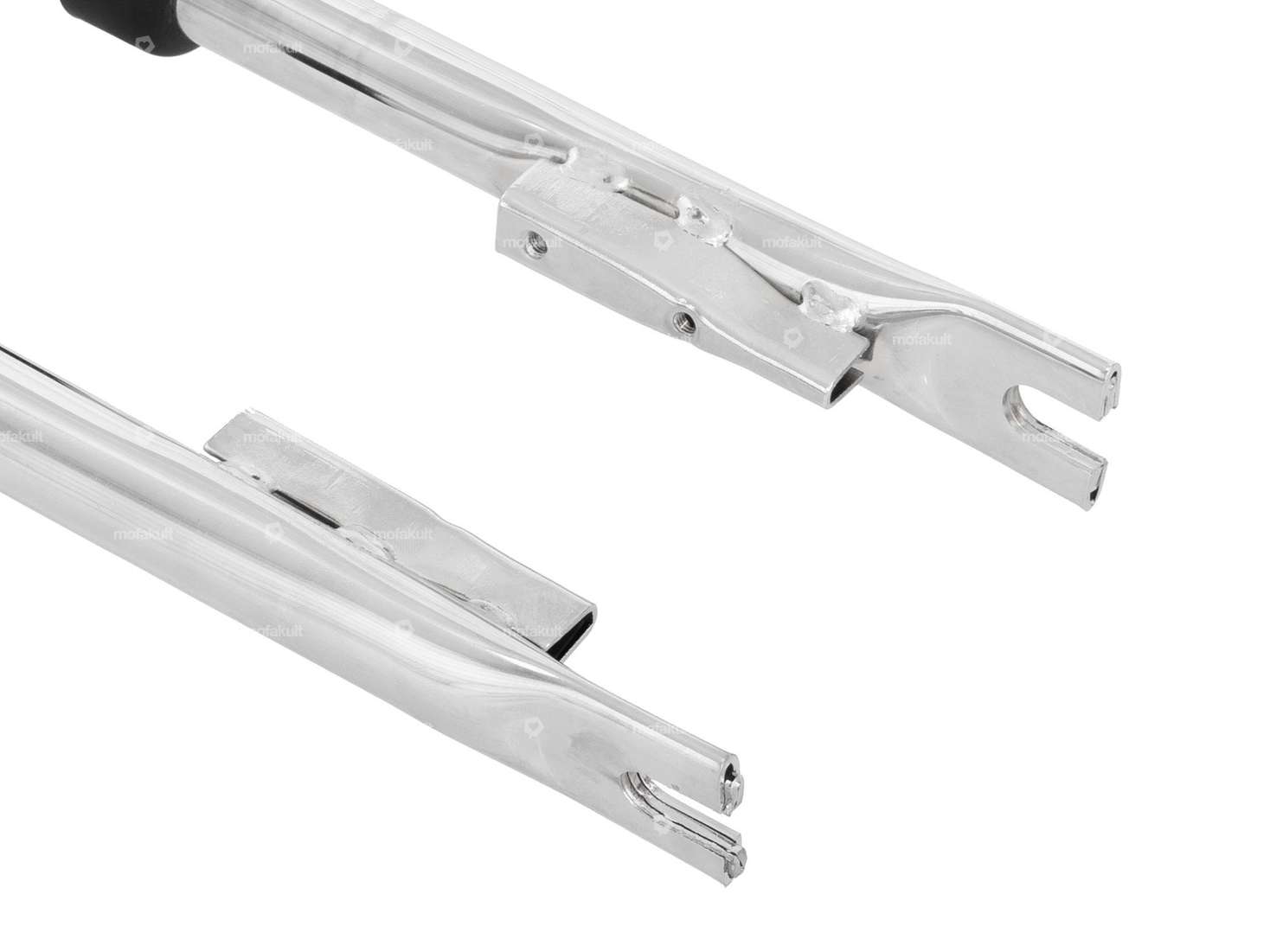

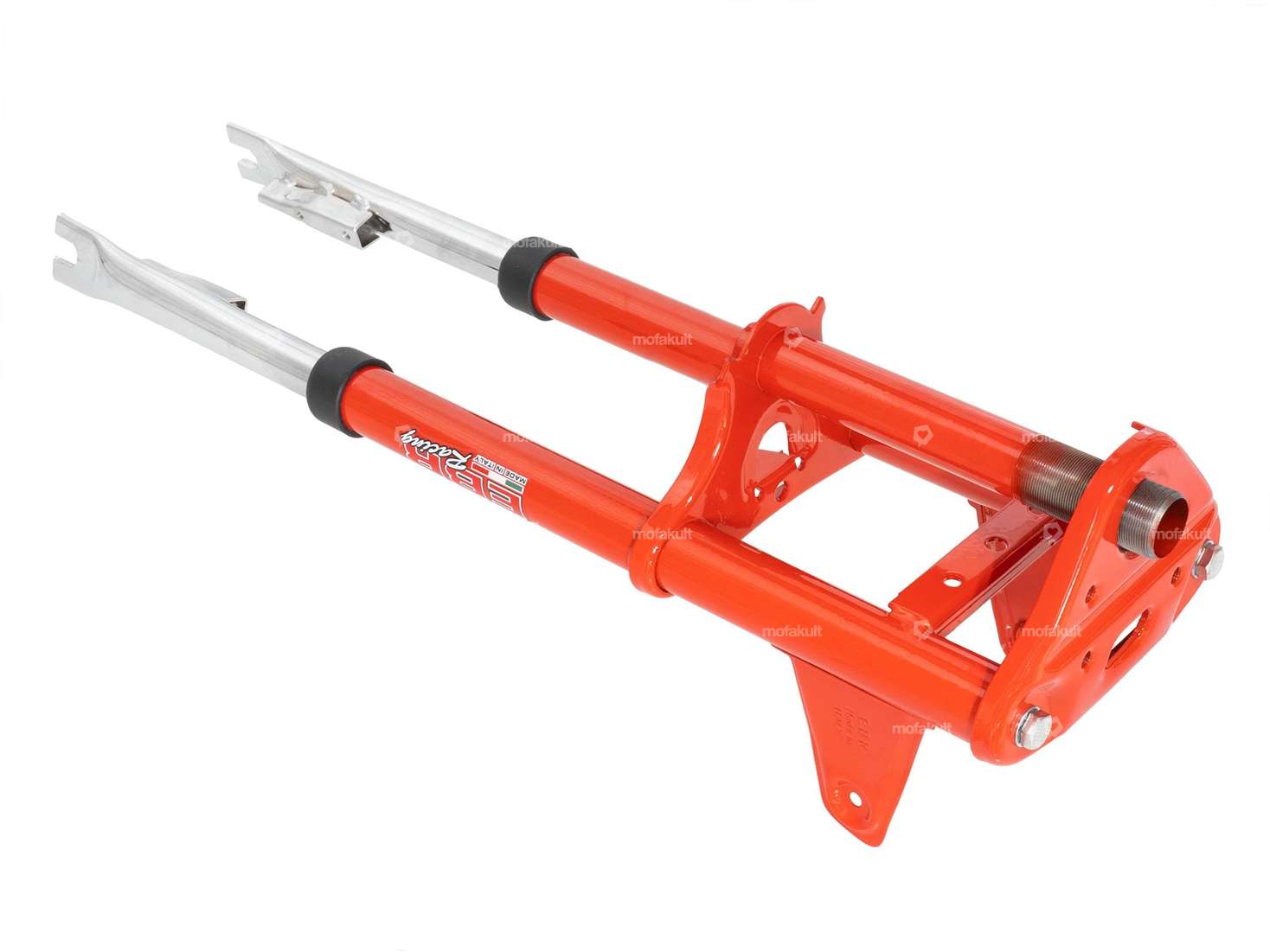

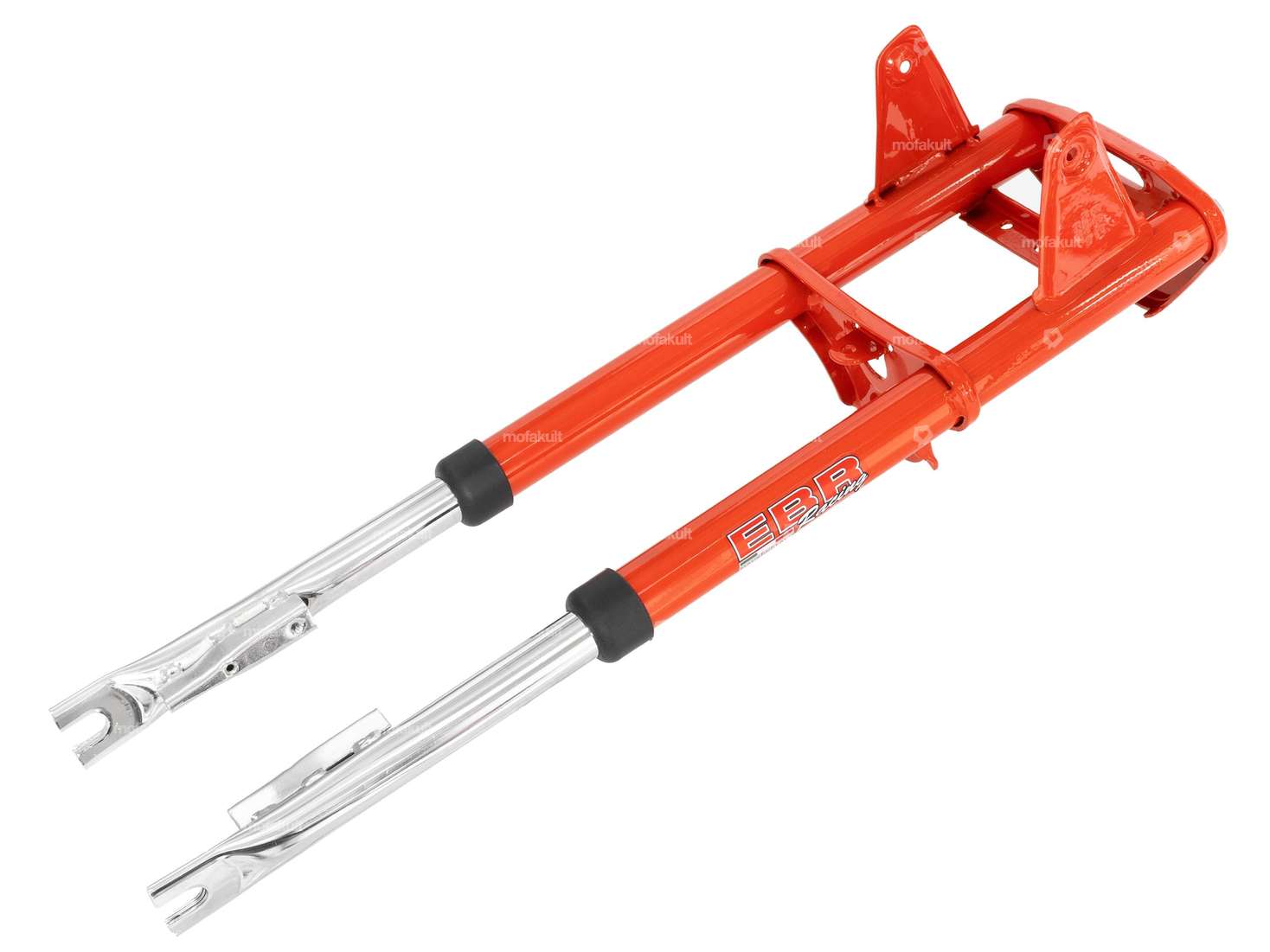

Red EBR standard fork for various Puch mopeds / mopeds.
Optically like the original Puch fork, but without fork lock mount.
The handlebar mounting is provided on the fork plate.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Total length: 57 cm
You will find a matching snap ring, headset set and clamps among the accessories.
Branded product from the Italian manufacturer EBR.
Details
Total length | 570 mm |
Manufacturer | EWC |
Material | Steel |
Surface | varnished, chrome-plated |
Color | red, Chrome |
Ø head tube inside | 22 mm |
Head tube length | 180 mm |
Suitable for the following models
Puch |
