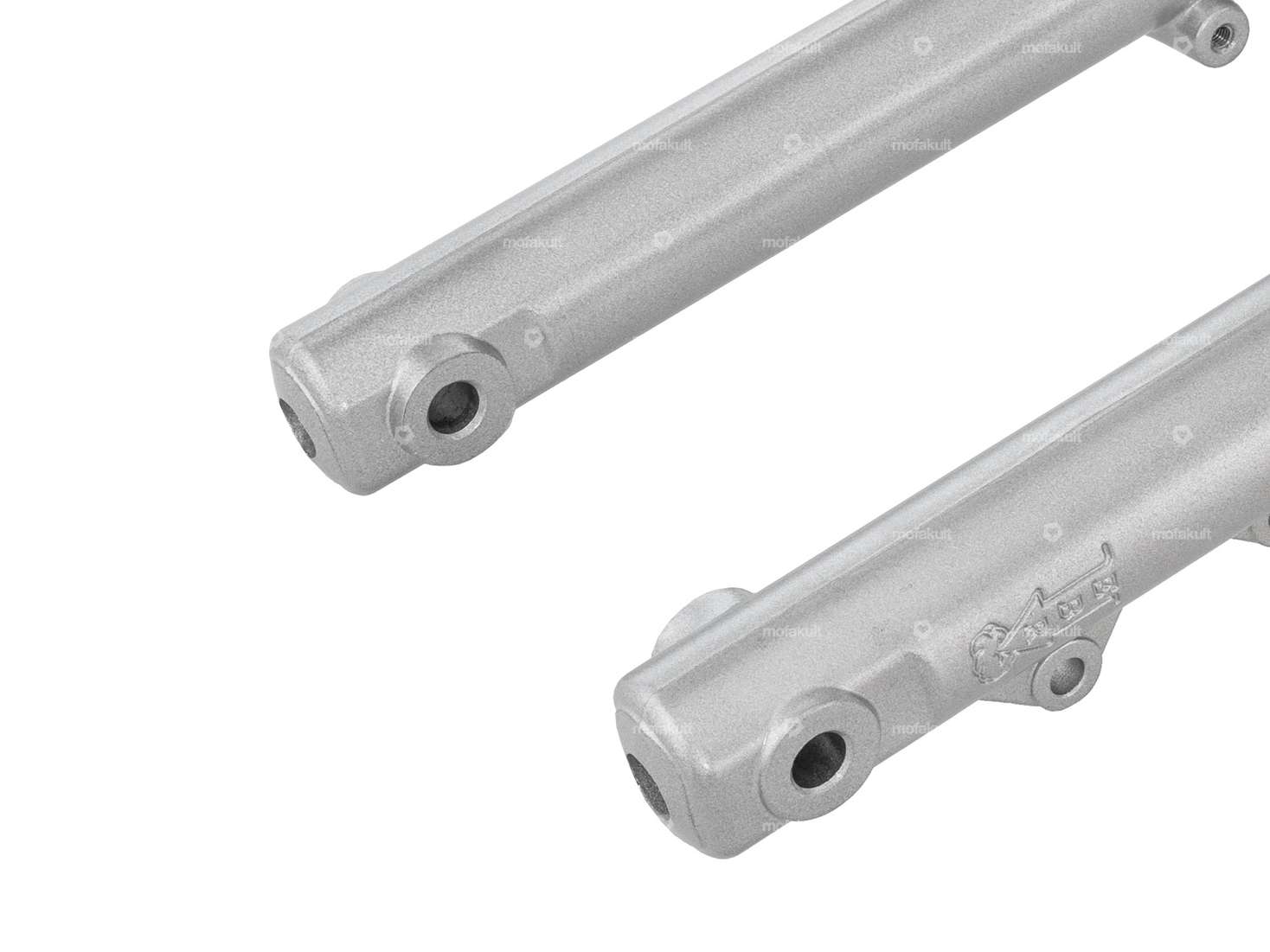

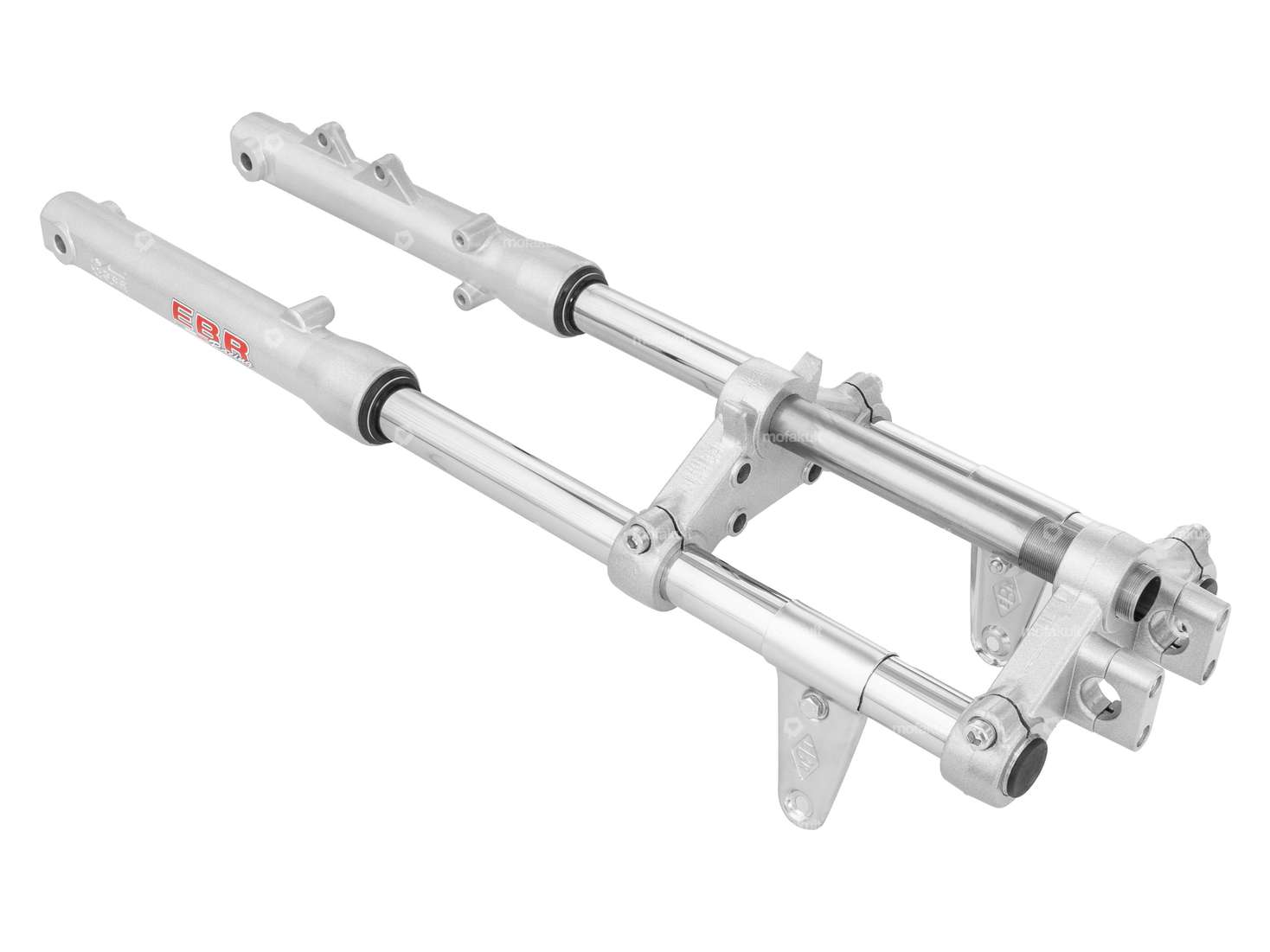

Special tele fork made of aluminum with solid steel tubes for your racing moped, moped and small motorcycle with disc brake conversion.
The fork has various threads and holes to mount a brake caliper. This makes it particularly suitable for racing.
Without cams for a brake anchor plate, the fork is designed for disc brakes only.
Ø inner head tube: 22 mm (for stem mounting)
Head tube length: 200 mm
Total length: 690 mm (adjustable)
Brake caliper mounting hole spacing: 60 mm

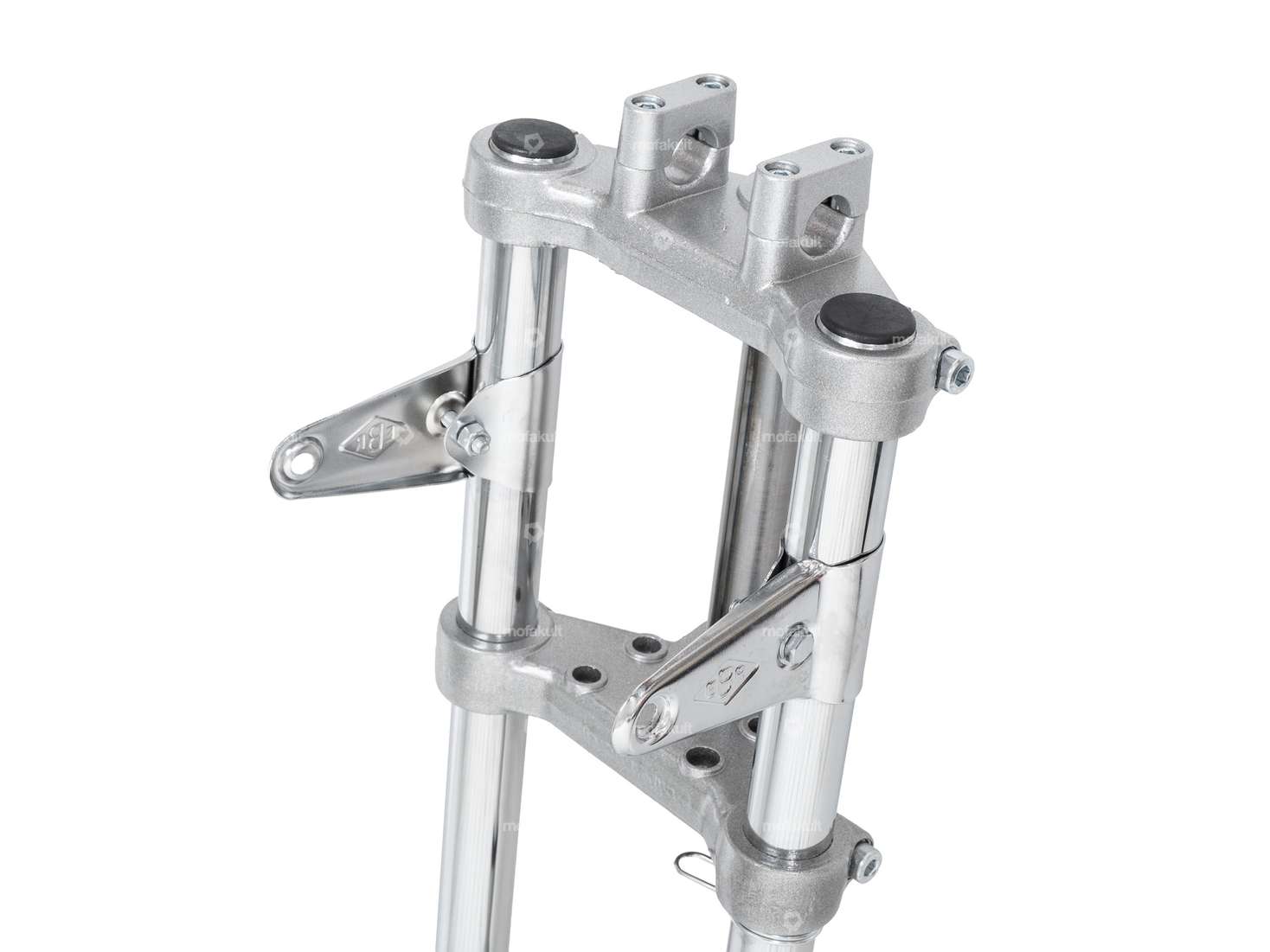

The double crown fork is supplied including the handlebar clamp on the upper fork crown.
A complete disc brake system and a fork including disc brake can be found in the accessories section.
Branded product from the Italian manufacturer EBR.
Details
Manufacturer | EWC |
Material | Aluminum, Steel |
Surface | varnished, chrome-plated |
Adjustable | Yes |
Color | silver, Chrome |
Spar end distance (center-center) | 150 mm |
Thread type | MF26x1 (fine pitch thread) |
Ø outer head tube | 26 mm |
Ø spars | 30 mm |
Ø head tube inside | 22 mm |
Head tube length | 200 mm |
Total length | 705 mm |
Fork bridge - center wheel axle | 458 mm |
Thread length | 57 mm |
Suitable for the following models
Puch |
