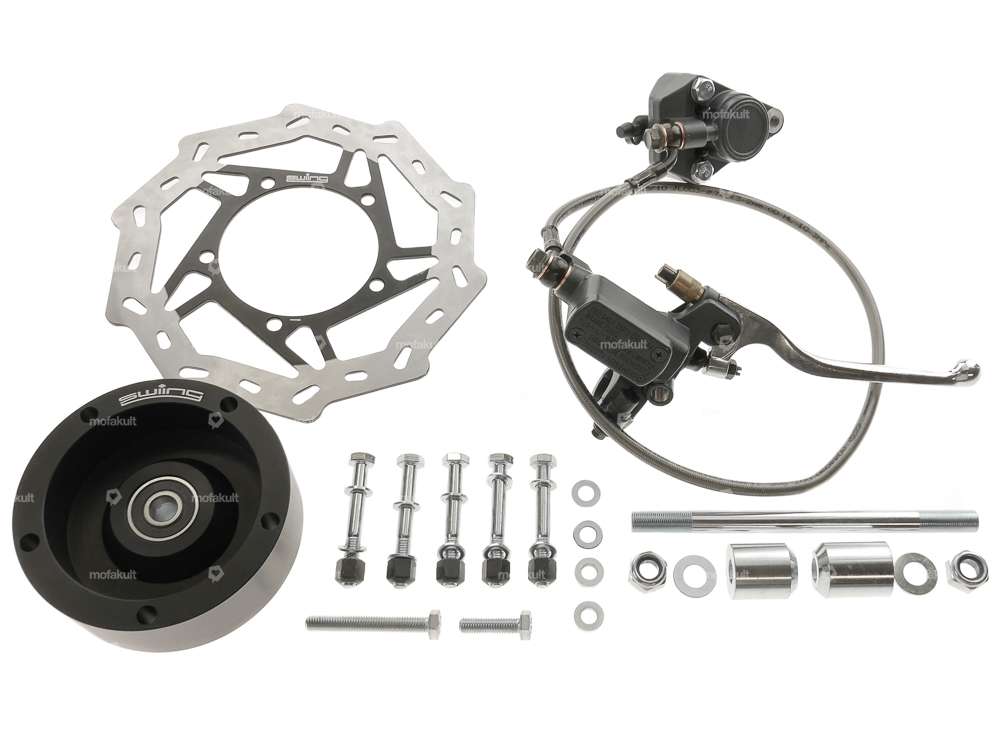

High-quality disc brake system for your Puch moped / moped, which can be fitted without any modifications.
All add-on parts are of the highest quality and accuracy of fit. The components are designed for the 5-star cast rim for Puch mopeds. The corresponding rim and matching EBR Harry forks can be found in the accessories section.
The brake calliper and brake lever are already fitted with brake fluid and therefore only need to be bolted on. The steel flex brake cable is 90 cm long. Bear this in mind when selecting the handlebars. All screw connections must be secured with Loctite.
The two spacers are mounted in the direction of travel as follows: left: 26.25 mm long / right: 23.5 mm long.
When you buy this complete set, you get a big percentage off the retail price of the individual parts.
Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 60 mm, 32 mm · Thread type: M8x1.25 (standard thread)
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 220 mm
Manufacturer: swiing® ingenious parts · Drive: External hexagon · Screw head: Hexagon · Number of components: 5 pcs · Material: Steel · Surface: galvanized (blue)
| Manufacturer | swiing® ingenious parts |
| Color | black |
| Puch |
Ratings
Accessories & related products
EBR telescopic fork aluminum (Harry) silver | Puch
Thread type: MF26x1 (fine pitch thread) · Manufacturer: EWC · Thread length: 57 mm · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Adjustable: Yes · Color: silver · Ø spars: 30 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 200 mm · Total length: 705 mm · Fork bridge - center wheel axle: 458 mm
CHF 244.90
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Color: blue · Signal word: Attention · Contents [ml]: 10 ml · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
CHF 21.90
CHF 2’190.00/l
Racing handlebar fork plate 8 cm / wide aluminum silver
Material: Aluminum · Surface: anodized · Color: silver · Ø outside: 22 mm · Fork plate holder length: 150 mm · Height: 80 mm · Mounting type: Fork plate · Length handlebar ends: 215 mm · Crossbar: Yes · Ø inside (C): 12 mm · Width: 810 mm · Total length over ends: 260 mm · Clamping diameter: 22 mm
CHF 43.90
Handlebar fork plate 13 cm Cross black
Material: Steel · Surface: varnished · Color: black · Fork plate holder length: 100 mm · Mounting type: Fork plate · Ø outside: 22 mm · Clamping diameter: 22 mm · Length handlebar ends: 180 mm · Width: 665 mm · Crossbar: Yes · Height: 130 mm · Ø inside (C): 12.5 mm · Total length over ends: 230 mm
CHF 24.90
Not in stock
EBR telescopic fork aluminum (Harry) black | Puch
Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Adjustable: Yes · Ø spars: 30 mm · Spar end distance (center-center): 150 mm · Color: Chrome · Color: black · Ø head tube inside: 22.3 mm · Thread type: MF26x1 (fine pitch thread) · Ø outer head tube: 26 mm · Thread length: 58 mm · Head tube length: 200 mm · Total length: 680 mm · Fork bridge - center wheel axle: 450 mm
CHF 239.90
Grimeca rim 17" cast black NOS | Puch Maxi
Nominal diameter: 432 mm · Manufacturer: Grimeca · Material: Aluminum · Surface: varnished · Color: black · Wheel size [inch]: 17 " · Rim well depth: 6 mm · Overall width outside: 48.4 mm · Jaw width [inch]: 1.4 " · Jaw width: 34.5 mm
CHF 259.90
Not in stock
Brake caliper, brake hose & brake lever for EBR forks
Material: Cast aluminum · Surface: varnished · Color: gray · Ø Handlebars: 22 mm · Mounting type: Nuts & bolts · Hole spacing: 32 mm · Hole spacing: 60 mm · Brake lever length (lever length): 162 mm · Cable length: 900 mm · Thread type: M8x1.25 (standard thread) · Number of fixing points: 4 pcs
CHF 164.90
Motorex brake fluid DOT4 250 ml
Manufacturer: Motorex · DOT class (brake fluid): DOT 4 (230°C) · Contents [ml]: 250 ml · Hazard warning: Can harm the child in the womb · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS08 - Harmful to health · Area of application: Standard
CHF 8.70
CHF 34.80/l
Brake line 0.9 - 1.9 m (selection) black 28 / 90° incl. banjo bolts
Material: Rubber · Material: Steel · Color: black · Cable length: 900 mm · Cable length: 1000 mm · Cable length: 1150 mm · Cable length: 1400 mm · Cable length: 1600 mm · Cable length: 1700 mm · Cable length: 1900 mm · Mounting type: Screws · Thread type: MF10x1.25 (fine pitch thread)
CHF 23.90
Moped fans also bought
Return spring brake plate | Puch Maxi
Spring design: Nose feather · Spring design: Torsion spring · Ø wire: 2.4 mm · Leg length: 45 mm · Length spring hook: 50 mm · Area of application: Original · Area of application: Standard · Material: Spring steel · Surface: galvanized (blue) · Ø inside: 25.5 mm · Ø outside: 30 mm · Total length: 125 mm
CHF 4.90
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm · Thread type: MF12x1 (fine pitch thread)
CHF 9.90
Brake caliper, brake hose & brake lever for EBR forks
Material: Cast aluminum · Surface: varnished · Color: gray · Ø Handlebars: 22 mm · Mounting type: Nuts & bolts · Hole spacing: 32 mm · Hole spacing: 60 mm · Brake lever length (lever length): 162 mm · Cable length: 900 mm · Thread type: M8x1.25 (standard thread) · Number of fixing points: 4 pcs
CHF 164.90
Brake line 0.9 - 1.9 m (selection) black 28 / 90° incl. banjo bolts
Material: Rubber · Material: Steel · Color: black · Cable length: 900 mm · Cable length: 1000 mm · Cable length: 1150 mm · Cable length: 1400 mm · Cable length: 1600 mm · Cable length: 1700 mm · Cable length: 1900 mm · Mounting type: Screws · Thread type: MF10x1.25 (fine pitch thread)
CHF 23.90
swiing® ingenious spacer sleeve set disc brake hub EBR Harry black | Puch
Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Nominal diameter inside: 12 mm · Ø inside: 12.1 mm · Ø outside: 18 mm · Ø outside: 30 mm · Total length: 23.5 mm · Total length: 26.25 mm
CHF 25.90
