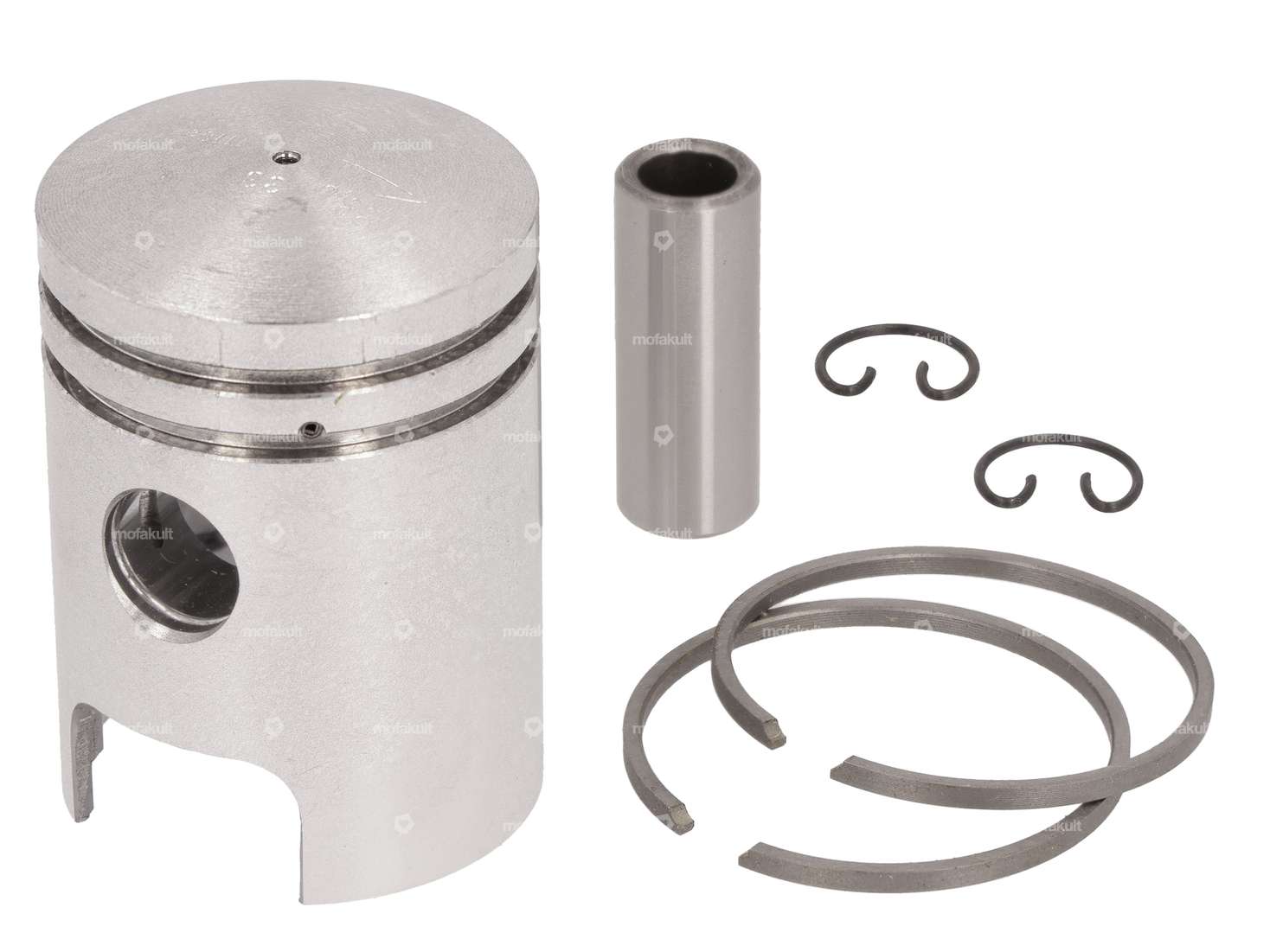

38 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Puch moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Nominal diameter | 38 mm |
| Manufacturer | ELKO (König) |
| Ø outside piston (A) | 37.98 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 3.4 mm |
| Total piston height (E) | 55 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Puch spare part no. | 350.3.101060/33 |
Suitable for the following models
| Puch |
Accessories & related products
Meteor piston 38 mm #2 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 2
CHF 49.90
GPO piston pin extractor Ø 10, 12, 14 mm
Material: Steel · Surface: burnished · Total length: 130 mm · Manufacturer: GPO · Number of components: 7 pcs · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
CHF 19.90
GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Manufacturer: GPO · Number of components: 4 pcs · Ø outlet inside: 22 mm · Ø cylinder: 38 mm · Area of application: Standard · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes
CHF 7.40
Gilardoni italkit piston 38 mm no. 1 | Puch Maxi
Manufacturer: Gilardoni italkit · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.9 mm · Total piston height (E): 52.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm
CHF 79.90

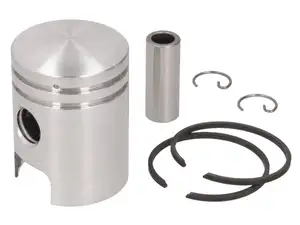

Gilardoni italkit piston 38 mm No. 3 | Puch Maxi
