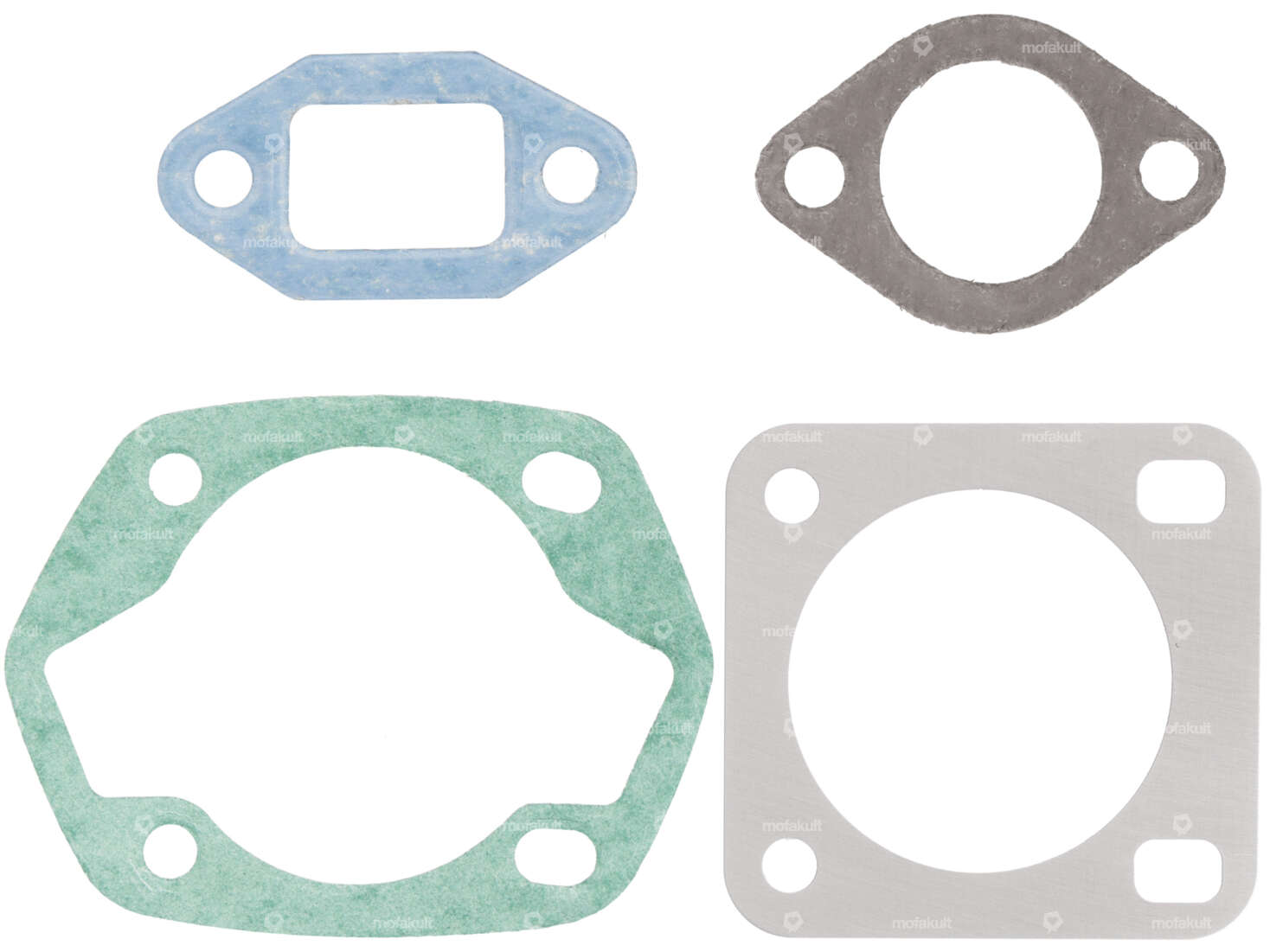

Gasket set for the cylinder on your Belmondo and Bergsteiger M25 and M50 moped / moped with Zündapp 247 engine
.The gasket set contains the following components:
1x cylinder base gasket (sealing paper) 0.5 mm
1x cylinder head gasket (aluminum) 0.5 mm
1x inlet gasket (sealing cardboard) 54 x 28 x 1.7 mm / inside 24.4 x 16.5
1x exhaust gasket (sealing cardboard) 53 x 36.5 x 0.8 mm / Ø 25 mm
A quality product manufactured in Germany.
Details
Manufacturer | Made in Germany |
Material | Sealing paper, Aluminum, Sealing carton |
Ø cylinder | 42.9 mm |
Ø outlet inside | 25 mm |
Hole spacing inlet | 39 mm |
Thickness | 0.5 mm, 1.7 mm, 0.8 mm |
Hole pattern [mm] | 41/45 x 42 |
Hole spacing outlet | 40 mm |
Number of components | 4 pcs |
Decompressor | none |
Suitable for the following models
Zündapp Belmondo | |
Zündapp | 434 Fahrgestell (Bergsteiger) 247 Motor |
Accessories & related products

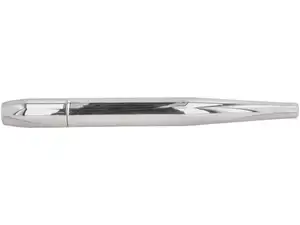

GPO exhaust cigar original Ø 28 / 55 mm | Zündapp Belmondo, Bergsteiger
Manufacturer: GPO · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 560 mm · Ø Internal connection: 28 mm · Ø outside: 55 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp
CHF 119.90
swiing® ingenious 39 mm cylinder kit tuning with head | Zündapp Bergsteiger M25, M50 (Type 247)
Nominal diameter: 39 mm · Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning
CHF 224.90
Not in stock
swiing® ingenious 44 mm cylinder kit tuning with head | Zündapp Bergsteiger M25, M50 (Type 247)
Nominal diameter: 44 mm · Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning
CHF 239.90

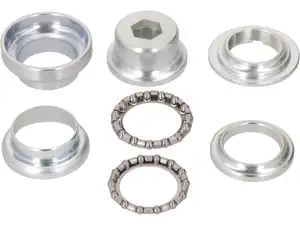

Control bearing set (7-piece) | Zündapp Bergsteiger M25
Material: Steel · Surface: blue galvanized · Color: silver · Bearing type: Ball ring · Ø inside: 27.4 mm · Ø inside: 28.9 mm · Ø mounting frame: 31 mm · Height: 20.4 mm · Height: 20.7 mm · Ø ball [inch] / [mm]: 3/16" (4.78 mm) · Ø ball [inch] / [mm]: 5/32" (4.00 mm) · Ø outside: 44.6 mm · Ø outside: 45 mm · Thread type: MF25x1 (fine pitch thread) · Zündapp spare part no.: 423-13.701
CHF 34.90
Moped fans like you also bought:

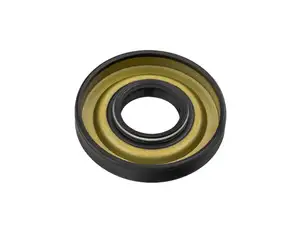

Oil seal NBR 17/40/7 A DUO | Puch E50
