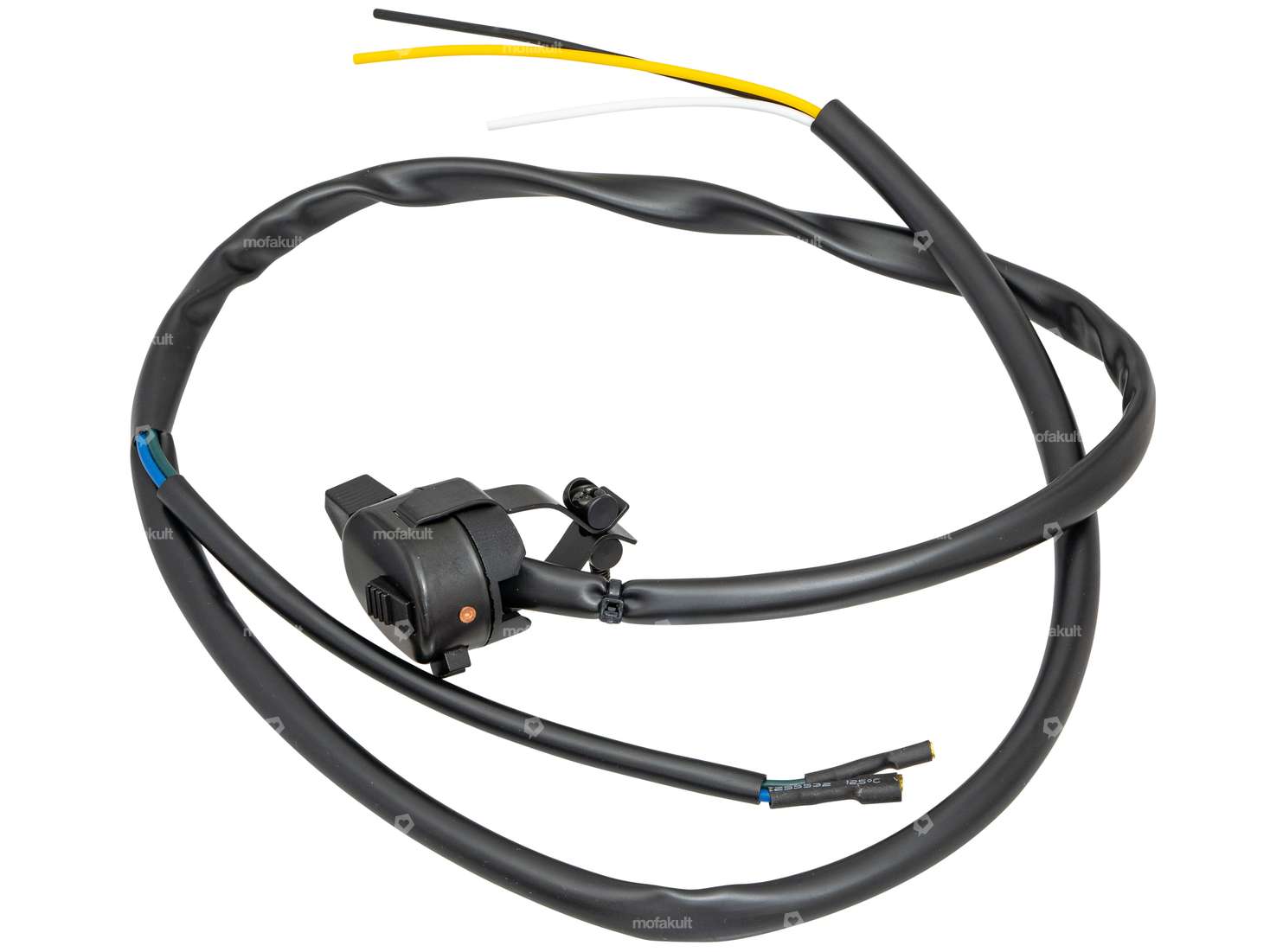

Light switch with wiring harness in basic version for your moped, moped and small motorcycle.

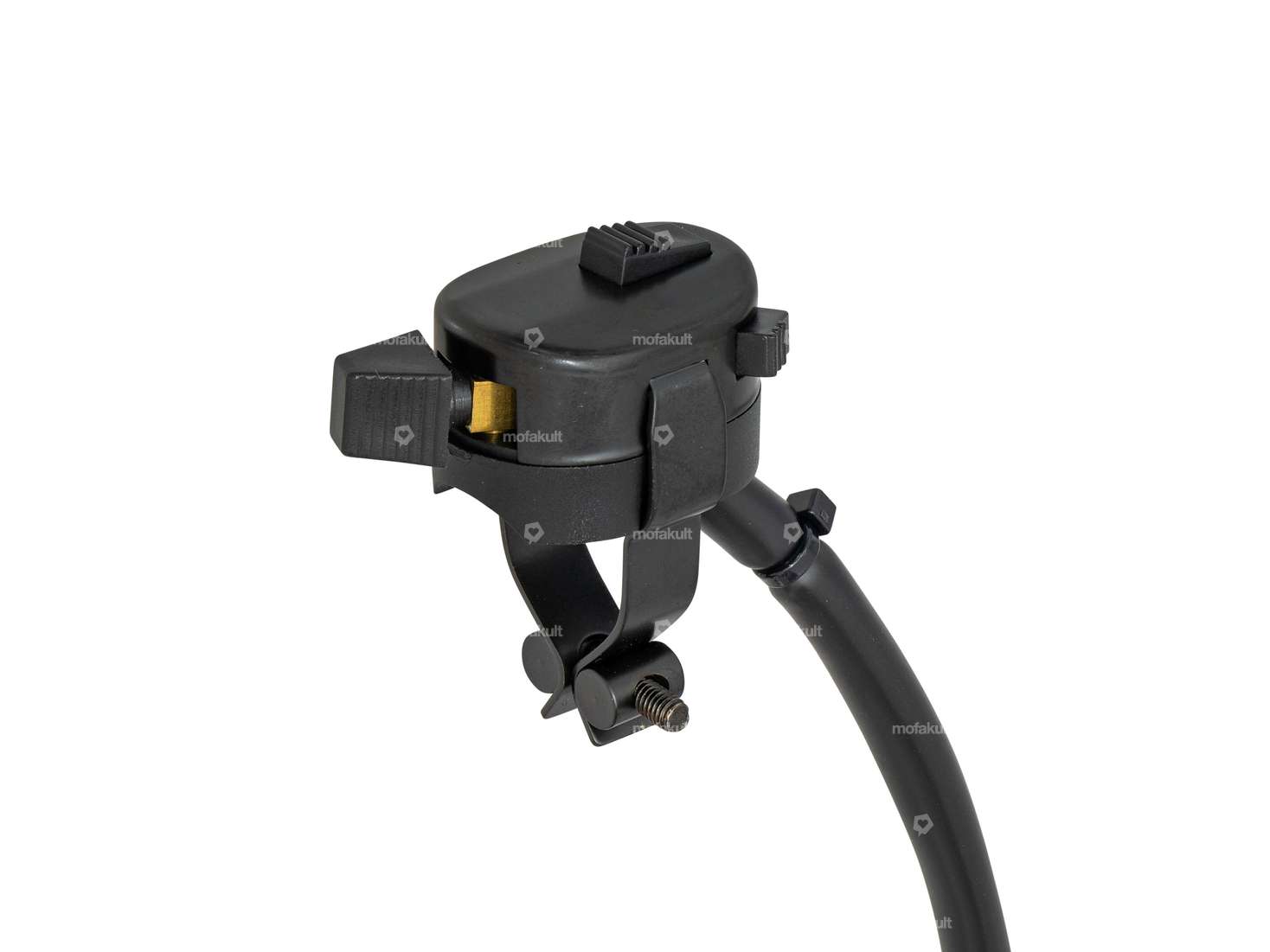

The switch unit has three switch positions as well as a stop and horn button.
Cable fork to switch: 40 cm

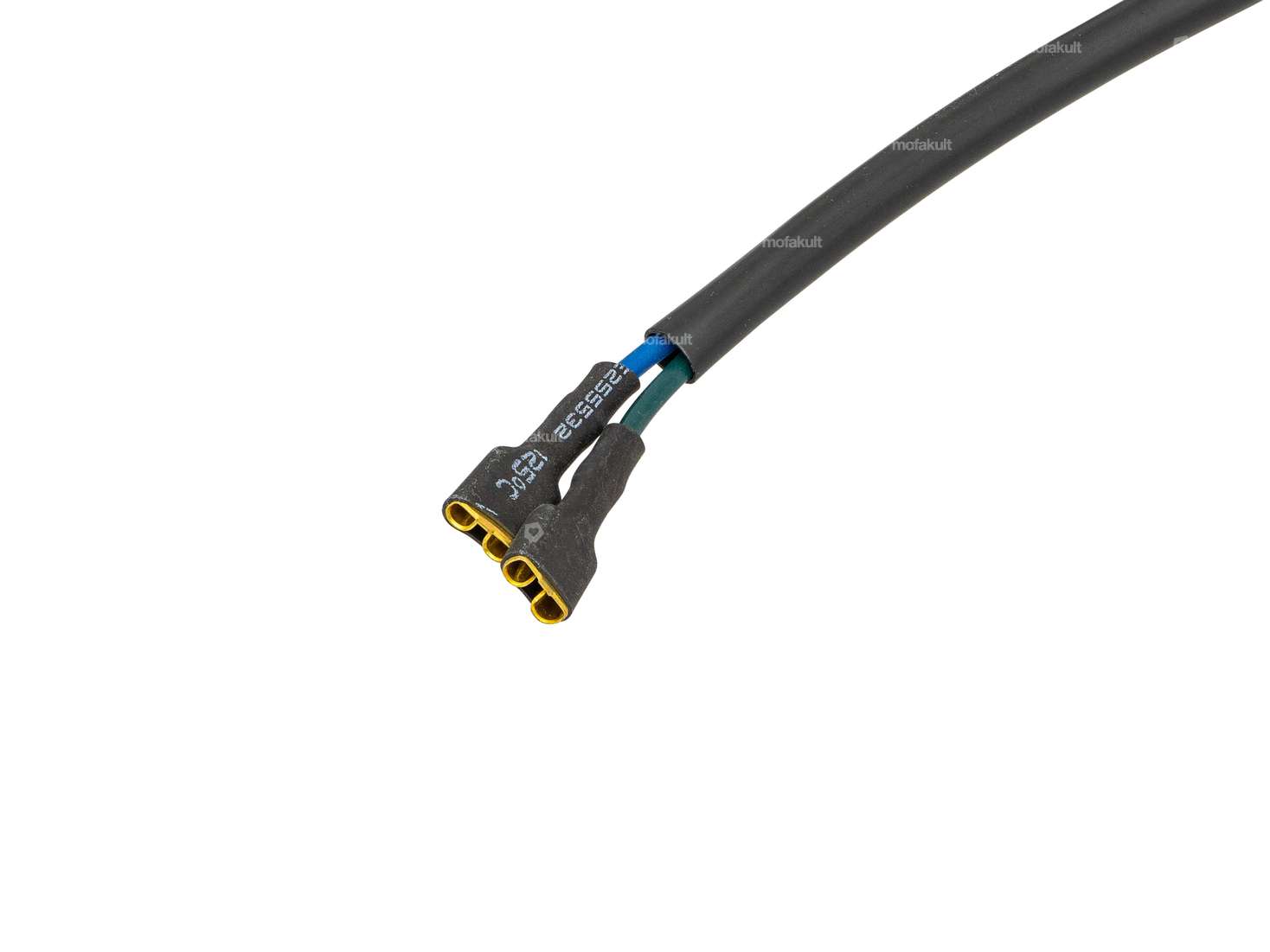

Cable fork to lamp: 18 cm
Cable fork to motor: 50 cm
White - parking light
Yellow - power supply
Blue - parking light or driving light
Green - parking light or driving light
Black - kill switch

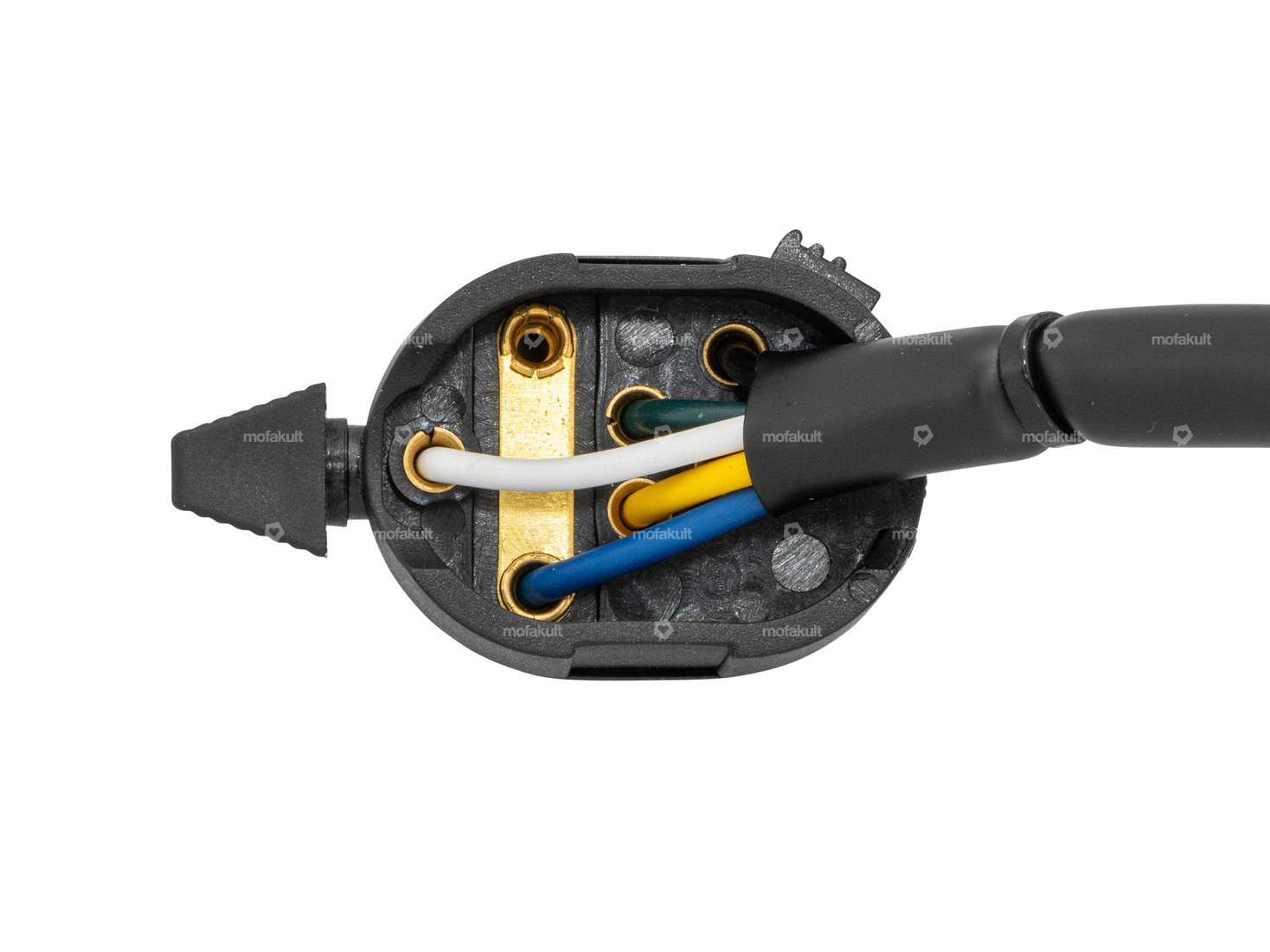

Note: Check all cable terminals in the switch before installation. It can happen that individual cable clamps are not sufficiently tightened and are mixed up. The correct connection type can be found in image 4.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Manufacturer | GPO |
| Ø Receptacle | 22 mm |
| Number of cables | 5 pcs |
| Cable bifurcation to motor | 50 mm |
| Switch included | Yes |
| Cable bifurcation to lamp | 180 mm |
| Luster terminal | No |
| Cable bifurcation to switch | 400 mm |
