Parts from Athena

Athena - High-quality racing technology from the cylinder to the racing kit for your moped

With high-quality gaskets, powerful racing cylinders, practical cylinder kits and solid pistons from Athena, you can boost your bike's top speed to unimagined heights.

Cult factor

Assortment

Availability

Quality

logo_athena
Athena gasket set 40 mm cylinder (1A quality) | Solex
undefined

For: Solex

15211

Athena gasket set 40 mm cylinder (1A quality) | Solex

Manufacturer: Athena · Number of components: 6 pcs · Ø cylinder: 40 mm · Area of application: Tuning

CHF 15.90

Not in stock

Athena diaphragm seal AJH
undefined

For: Puch

16583

Athena diaphragm seal AJH

Manufacturer: Athena · Material: Oiled paper · Place of use: Admission · Thickness: 0.5 mm · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62 · Area of application: Tuning

CHF 3.30

Pistone Athena 45 mm #C | Puch
undefined

For: Puch

11819

Athena piston 45 mm #C | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.4 mm · Curvature (D): 3.23 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: C · Piston weight: 97 g

CHF 49.70

Pistone Athena 45 mm rivestito AJH | Puch
undefined

For: Puch

16841

Athena 45 mm piston AJH coated | Puch

Manufacturer: Athena · Surface: Teflon-coated · Nominal diameter: 47 mm · Ø outside piston (A): 44.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 21.95 mm · Curvature (D): 3.97 mm · Total piston height (E): 49.6 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 0.96 mm · Piston weight: 90 g

CHF 49.90

Not in stock

Athena 22 mm collettore di aspirazione Diaframma Dell'Orto PHBG | Puch
undefined

For: Puch

11194

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Ø inside: 22 mm · Ø External connection: 26 mm · Mounting type: Screws · Hole pattern [mm]: 60 x 40 · Number of fixing points: 4 pcs · Area of application: Tuning

CHF 28.90

Kit cilindro Athena 45 mm 70 cc camuffato | Puch
undefined

For: Puch

10915

Athena 45 mm cylinder kit 70 ccm camouflaged | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 23.5 mm · Inlet window: 22.3 x 14 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes · Area of application: Tuning

CHF 159.00

Athena gasket set 45 / 47 mm slot
undefined

For: Puch

11454

Athena gasket set 45 / 47 mm slot

Manufacturer: Athena · Number of components: 4 pcs · Ø cylinder: 45 mm · Ø cylinder: 47 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

CHF 11.40

Pistone Athena AJH 45 mm #A | Puch
undefined

For: Puch

15296

Athena piston AJH 45 mm #A | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.9 mm · Ø piston pin (B): 12 mm · Compression height (C): 25 mm · Curvature (D): 2.8 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 94 g

CHF 63.90

Pistone Athena 45 mm AJH #B | Puch
undefined

For: Puch

16170

Athena piston 45 mm AJH #B | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.93 mm · Ø piston pin (B): 12 mm · Compression height (C): 24.9 mm · Curvature (D): 2.82 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: B · Piston weight: 94 g

CHF 63.90

Pistone Athena 45 mm #A | Puch
undefined

For: Puch

11196

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 98 g

CHF 49.70

Kit cilindro Athena 38 mm con guarnizione | Puch
undefined

For: Puch

10541

Athena 38 mm cylinder kit with seal | Puch

Nominal diameter: 38 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning

CHF 149.90

Pistone Athena 38 mm #A | Puch
undefined

For: Puch

17769

Athena piston 38 mm #A | Puch

Manufacturer: Athena · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.55 mm · Total piston height (E): 55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 76 g

CHF 64.90

Collettore di aspirazione Athena versione vecchia
undefined

For: Puch

10785

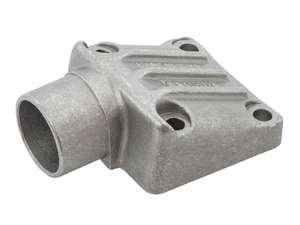

Athena intake manifold old version.

Manufacturer: Athena · Material: Aluminum · Area of application: Tuning · Ø inside: 20.5 mm · Ø External connection: 24 mm · Mounting type: Screws · Number of fixing points: 4 pcs

CHF 22.80

Athena cylinder base gasket oil paper | Piaggio Ciao, SI, Bravo, Boxer
undefined

For: Piaggio

16860

Athena cylinder base gasket oil paper | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Material: Oiled paper · Place of use: Cylinder base

CHF 4.30

Page 1 of 9

Extra power for your moped with components from Athena

Do you like travelling a little faster on your moped and want to get the maximum performance out of your bead? Then you will love the racing cylinders from top manufacturer Athena. The Italian manufacturer is one of the most renowned producers of racing and tuning cylinders in the two-stroke sector. From cylinder kits, pistons and piston rings to custom-fit crankshafts and new gaskets, the company offers parts for your moped in outstanding quality that can withstand even the highest material loads. Thanks to the extra quality of the racing cylinders, gasket sets and pistons, Athena products rightly enjoy an excellent reputation. That's why you'll find high-performance cylinder kits, durable crankshafts, plenty of gasket sets and other Athena products for your moped in our online shop.

athena-teilehersteller-logo

Racing parts for your moped from Athena

The pistons, gaskets and complete racing kits also owe their special quality to the many years of experience that Athena has gained in professional racing. With products from the Italian racing specialist, moped enthusiasts can therefore enjoy the benefits of innovations and materials that have proven themselves in the professional sector. Whether pistons, gaskets or complete racing kits for your moped - you can tell from Athena products that the top manufacturer knows exactly what excites tuning enthusiasts. The development of type-specific pistons and racing kits is always carried out in close cooperation with two-wheeler manufacturers in order to achieve optimum compatibility. A cylinder kit or piston ring from the Italians is therefore always a good choice. Regardless of whether you want to equip your Sachs, Piaggio or Puch moped with a racing cylinder or a new crankshaft.

athena-story-image-01

Top quality for racing since 1973

Today, Athena is an internationally recognised company that manufactures gaskets, cylinders and pistons for the moped and motor vehicle industry, among other things. However, the brand was founded in 1973 as a small craft business based in Alonte in Italy. Initially, the company manufactured industrial gaskets of all kinds. But just a few years later, the focus of the product range shifted towards the automotive sector. Athena also soon began to supply the aftermarket with high-quality components. From high-performance crankshafts to high-quality cylinder kits for more power, the company now offers a wide range of professional tuning parts for your moped too. With an annual turnover of more than €140 million and 11 production sites around the world, the former family business has long since become a genuine global player.

athena-story-image-02
