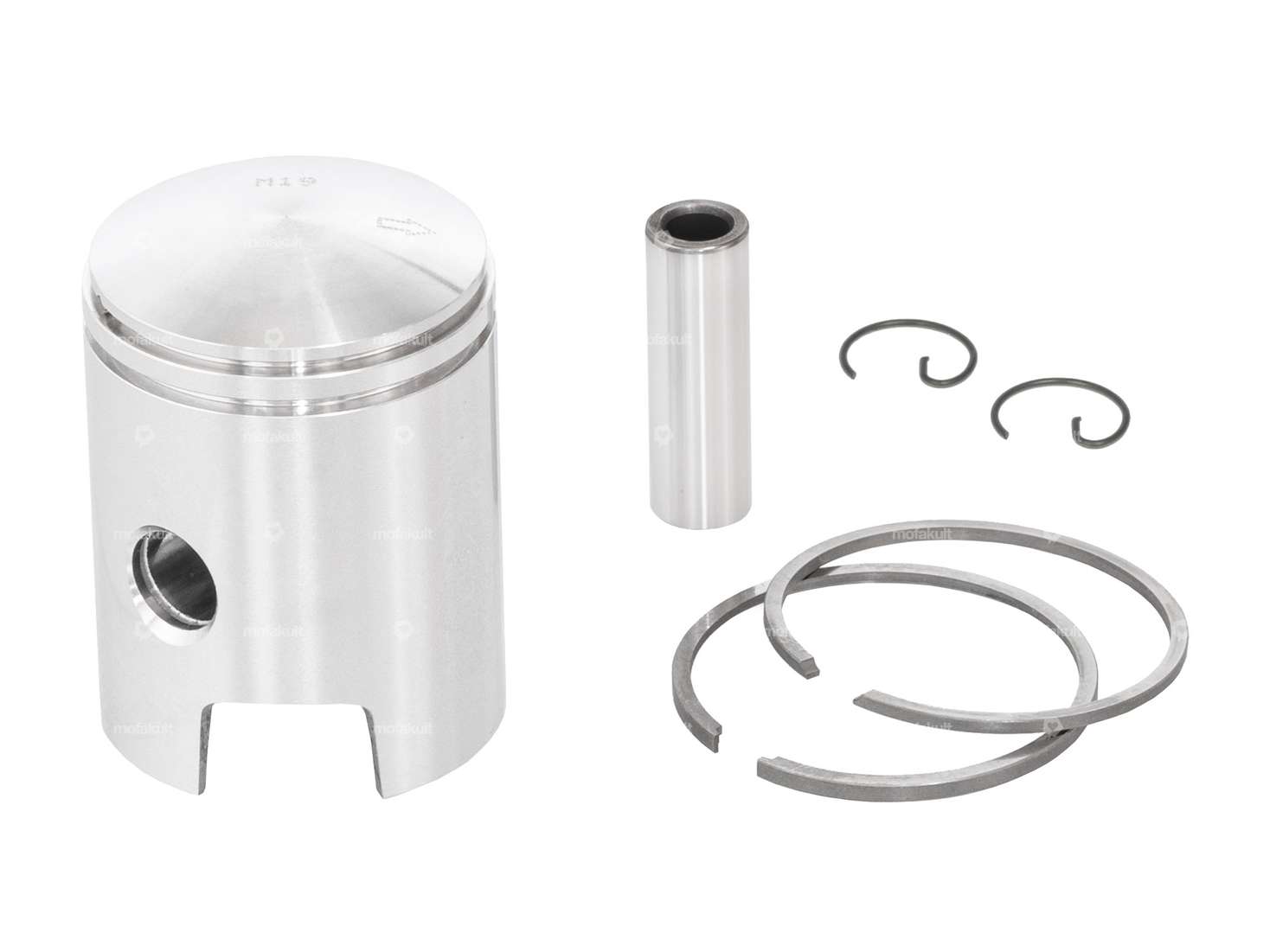

Piston kit with a rectangular piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) for your Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds without catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
Nominal diameter | 38.2 mm, 38.4 mm, 38.6 mm, 38.8 mm |
Manufacturer | Meteor |
Ø outside piston (A) | 38.2 mm, 38.4 mm, 38.6 mm, 38.8 mm |
Compression height (C) | 26.6 mm |
Curvature (D) | 3.3 mm |
Number of piston rings (F) | 2 pcs |
Piston ring mold | Rectangular ring |
Piston ring impact | Flank safety device (FS), Internal fuse (IS) |
Ø piston pin (B) | 10 mm |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
