Thrust & shim washers

Shim 16/22/0.5

Material: Steel · Surface: blank / oiled · Ø inside: 16 mm · Ø outside: 21 mm · Thickness: 0.5 mm · Nominal diameter inside: 16 mm

Shim 15/21/0.5

Nominal diameter inside: 15 mm · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø inside: 15 mm · Ø outside: 21 mm

swiing® revival shim set | Sachs 503, 502, 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Ø inside: 12.5 mm · Ø inside: 15.2 mm · Ø outside: 18 mm · Ø outside: 21 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 1 mm · Nominal diameter inside: 13 mm

swiing® revival shim set crankshaft L17 | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Ø inside: 17.1 mm · Ø outside: 23.8 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Nominal diameter inside: 17 mm

swiing® revival thrust washer set Ø 15 / 17 mm | Puch E50

Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 22 mm · Ø outside: 24 mm · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: hardened & ground · Thickness: 1.1 mm · Thickness: 1.3 mm · Thickness: 1.5 mm · Thickness: 1.7 mm

MBR thrust washer 15/22/0.2 clutch | Puch E50, Z50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 0.2 mm

swiing® revival thrust washer 15/22/1.5 clutch | Puch E50, Z50

Ø inside: 15 mm · Ø outside: 22 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.5 mm

Spacer washer 13/19/0.2 Pinion shaft / Kickstarter | Sachs

Nominal diameter inside: 13 mm · Manufacturer: Sachs · Surface: blank / oiled · Material: Steel · Thickness: 0.2 mm · Ø inside: 13 mm · Ø outside: 19 mm · Pony OEM number: A1539 · Sachs OEM no.: 0244 006 006

swiing® revival thrust washer 15/22/1.7 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Thickness: 1.7 mm · Ø outside: 22 mm · Puch OEM number: 050.1213

Spacer washer 16/22/0.5 pinion shaft / pedal shaft | Sachs

Nominal diameter inside: 16 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 16.1 mm · Ø outside: 22 mm · Thickness: 0.5 mm · Pony OEM number: A1574 · Sachs OEM no.: 0244 081 002

MBR thrust washer 15/22/0.3 clutch | Puch E50, Z50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 0.3 mm

Spacer washer 16/22/0.1 pinion shaft / pedal shaft | Sachs

Nominal diameter inside: 16 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.1 mm · Ø outside: 22 mm · Ø inside: 16 mm

swiing® revival thrust washer 15/22/1.1 clutch | Puch E50, Z50

Ø inside: 15 mm · Ø outside: 21.9 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.1 mm

swiing® revival thrust washer 15/22/0.8 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 0.8 mm

swiing® revival thrust washer 15/22/0.6 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 0.6 mm

swiing® revival shim set crankshaft | Puch ZA50

Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled

Spacer washer 16/22/0.2 pinion shaft / pedal shaft | Sachs

Nominal diameter inside: 16 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.2 mm · Ø inside: 16 mm · Ø outside: 22 mm

Shim 19/26/0.3

Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Nominal diameter inside: 19 mm

swiing® revival thrust washer 15/22/1.3 clutch | Puch E50, Z50

Thickness: 1.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø outside: 22 mm · Ø inside: 15 mm

swiing® revival thrust washer 15/22/1.0 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 1 mm

Thrust washer 16.5/31.3/1 main shaft | Sachs 50/2, 503 (A1570)

Material: Steel · Surface: hardened & ground · Thickness: 1 mm · Ø inside: 16.5 mm · Ø outside: 31.3 mm · Pony OEM number: A1570 · Sachs OEM no.: 0244 078 000

Spacer washer 13/19/0.5 Pinion shaft / Kickstarter | Sachs

Nominal diameter inside: 13 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø inside: 13 mm · Ø outside: 19 mm · Pony OEM number: A1533 · Sachs OEM no.: 0244 006 000

Spacer washer 13/19/0.1 Pinion shaft / Kickstarter | Sachs

Nominal diameter inside: 13 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.1 mm · Ø inside: 13 mm · Ø outside: 19 mm

Spacer washer 16/22/0.3 pinion shaft / pedal shaft | Sachs

Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 16 mm · Ø outside: 22 mm · Thickness: 0.3 mm · Nominal diameter inside: 16 mm · Pony OEM number: A1572 · Sachs OEM no.: 0244 081 000

MBR thrust washer 17/24/0.3 clutch | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Ø inside: 17 mm · Ø outside: 24 mm · Thickness: 0.3 mm

swiing® revival thrust washer 17/24/1.7 clutch | Maxi E50

Ø inside: 17 mm · Ø outside: 24 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.7 mm

Shim 18.6/24/0.2 Crankshaft | Tomos

Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Ø inside: 18.6 mm · Ø outside: 24 mm · Thickness: 0.2 mm · Nominal diameter inside: 18 mm · Tomos OEM number: 212959

swiing® revival thrust washer 16/26/1 clutch | Sachs 502 AL, AML / 503 AAL, AC, ADV (A1690)

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 16.3 mm · Ø outside: 26 mm · Thickness: 1 mm · Pony OEM number: A1690 · Sachs OEM no.: 0246 015 002

Brake cam disk anchor plate cast rim | Piaggio Ciao, SI, Bravo

Material: Steel · Surface: galvanized (blue) · Ø inside: 6.6 mm · Ø inside: 10 mm · Ø outside: 19.7 mm · Thickness: 1.55 mm · Piaggio OEM number: 184468

Spacer washer 13/19/0.3 Pinion shaft / Kickstarter | Sachs

Nominal diameter inside: 13 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.3 mm · Ø inside: 13 mm · Ø outside: 19 mm · Pony OEM number: A1534 · Sachs OEM no.: 0244 006 001

swiing® revival thrust washer 15/26/1 clutch | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 26 mm · Thickness: 1 mm

Spacer washer 15.7/21/1 pinion shaft | Sachs

Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 16 mm · Ø outside: 22 mm · Thickness: 1 mm · Nominal diameter inside: 16 mm · Pony OEM number: A1577 · Sachs OEM no.: 0244 081 066

swiing® revival thrust washer 17/24/1.5 Clutch | Maxi E50

Ø inside: 17 mm · Ø outside: 24 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.5 mm

Shim 19/26/0.5

Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Ø outside: 26 mm · Thickness: 0.5 mm · Nominal diameter inside: 19 mm

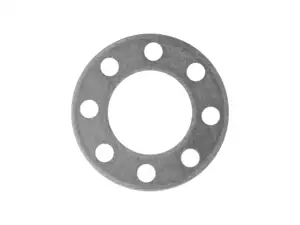

swiing® revival thrust washer 16.6/31.2/1 pinion shaft | Sachs 502, 50/2, 50/3, 50/4, 503 (A1570)

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 16.6 mm · Ø outside: 31.2 mm · Thickness: 1 mm · Pony OEM number: A1570 · Sachs OEM no.: 0244 078 000

Shim 13/19/1.0

Nominal diameter inside: 13 mm · Ø inside: 13.2 mm · Material: Steel · Thickness: 1 mm · Ø outside: 18.8 mm

Spacer 6.1/11.8/0.2 Engine | Zündapp Belmondo (Type 247)

Manufacturer: Zündapp · Material: Steel · Surface: blank / oiled · Ø inside: 6.1 mm · Ø outside: 11.8 mm · Thickness: 0.2 mm · Nominal diameter inside: 6 mm

swiing® revival thrust washer 13.5/27.8/1 roller bearing right | Sachs 502, 50/2, 503 (A1548)

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 13.5 mm · Ø outside: 27.8 mm · Thickness: 1 mm · Pony OEM number: A1547 · Pony OEM number: A1548 · Sachs OEM no.: 0244 039 000 · Sachs OEM no.: 3510 004 004

Thrust washer 15/22/1.2 clutch | Puch E50, Z50

Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 21.9 mm · Thickness: 1.2 mm

swiing® revival thrust washer 15/22/1.95 mm clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 1.95 mm

Spacer washer 13/19/0.15 Pinion shaft / Kickstarter | Sachs

Nominal diameter inside: 13 mm · Manufacturer: Sachs · Surface: blank / oiled · Material: Steel · Thickness: 0.15 mm · Ø inside: 13 mm · Ø outside: 19 mm · Pony OEM number: A1540 · Sachs OEM no.: 0244 006 007

Shim 20/30/0.5 Gearbox | Beta 521, 512 (A8073)

Manufacturer: Pony · Material: Steel · Surface: blank / oiled · Ø inside: 20 mm · Ø outside: 30 mm · Thickness: 0.5 mm · Nominal diameter inside: 20 mm

swiing® revival thrust washer 17/24/1.3 clutch | Maxí E50

Ø inside: 17 mm · Ø outside: 24 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.3 mm

Shim 15/25/0.5 Clutch | Beta 521, 512 (A8072)

Nominal diameter inside: 15 mm · Manufacturer: Pony · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø outside: 25 mm · Ø inside: 15 mm

swiing® revival thrust washer 13.5/31.2/1 pinion shaft | Sachs 502, 50/2 (A1571)

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 13.5 mm · Ø outside: 31.2 mm · Thickness: 1 mm · Pony OEM number: A1571 · Sachs OEM no.: 0244 078 005

swiing® revival thrust washer 16/26/0.3 clutch | Sachs 502 AL, AML / 503 AAL, AC, ADV (A1688)

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 16.3 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Pony OEM number: A1688 · Sachs OEM no.: 0246 015 000

swiing® revival thrust washer 15/22/2.1 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 21.9 mm · Thickness: 2.1 mm · Area of application: Standard · Puch OEM number: 050.1213 · Puch OEM number: 901.3949

Spacer washer 16/22/2 pinion shaft | Sachs

Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 15.7 mm · Ø outside: 21 mm · Thickness: 2 mm · Nominal diameter inside: 16 mm

swiing® revival thrust washer 17/24/1.1 clutch | Maxi E50

Ø inside: 17 mm · Ø outside: 24 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.1 mm

Shim 19/26/0.3 Freewheel 2nd gear | Sachs 503 ABL, AB, AC, ADV (A1197)

Nominal diameter inside: 19 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 19.1 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Pony OEM number: A1197 · Sachs OEM no.: 0244 200 000

Spacer 6.1/11.8/0.8 Engine | Zündapp Belmondo (Type 247)

Manufacturer: Zündapp · Material: Steel · Surface: blank / oiled · Ø inside: 6.1 mm · Ø outside: 11.8 mm · Thickness: 0.8 mm · Nominal diameter inside: 6 mm

swiing® revival thrust washer 12.5/18/2.2 gearbox | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 12.5 mm · Ø outside: 18 mm · Thickness: 2.25 mm

Spacer washer 10/20/1.0 countershaft NOS | Puch ZA50

Manufacturer: Puch · Material: Steel · Surface: blank / oiled · Ø inside: 10 mm · Ø outside: 20 mm · Thickness: 1 mm · Nominal diameter inside: 10 mm

Spacer washer 16/22/0.15 Pinion shaft / pedal start | Sachs

Nominal diameter inside: 16 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.15 mm · Ø inside: 16 mm · Ø outside: 22 mm

Spacer washer 10/22/0.2 countershaft | Puch ZA50

Manufacturer: Puch · Material: Steel · Surface: blank / oiled · Ø inside: 10 mm · Ø outside: 22 mm · Thickness: 0.2 mm · Nominal diameter inside: 10 mm

swiing® revival thrust washer 12.5/18/2 gearbox | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 12.5 mm · Ø outside: 18 mm · Thickness: 2 mm

Thrust washer bearing ring small NOS | Puch Z50

Manufacturer: Puch · Material: Steel · Surface: hardened & ground · Ø inside: 16 mm · Ø outside: 27.8 mm · Thickness: 1 mm

Spacer washer 23/28/1 Gearbox | Sachs 50/3, 50/4

Material: Steel · Surface: blank / oiled · Ø inside: 23 mm · Ø outside: 28 mm · Thickness: 1 mm · Nominal diameter inside: 23 mm

Shim 19/26/0.5 Freewheel 2nd gear | Sachs 503 ABL, AB, AC, ADV (A5615)

Nominal diameter inside: 19 mm · Tolerance: DIN 988 (-0.03 mm) · Manufacturer: Sachs · Material: Spring steel · Surface: Hardened · Ø inside: 19.1 mm · Ø outside: 26 mm · Thickness: 0.5 mm · Pony OEM number: A5615 · Sachs OEM no.: 0244 171 001

Spacer washer 10/22/0.1 countershaft | Puch ZA50

Manufacturer: Puch · Material: Steel · Surface: blank / oiled · Ø inside: 10 mm · Ø outside: 22 mm · Thickness: 0.1 mm · Nominal diameter inside: 10 mm
