This paint set is a remix of the original copper paint used by Puch (original color number P6801T).
The copper-orange glaze corresponds 100% to the original color.

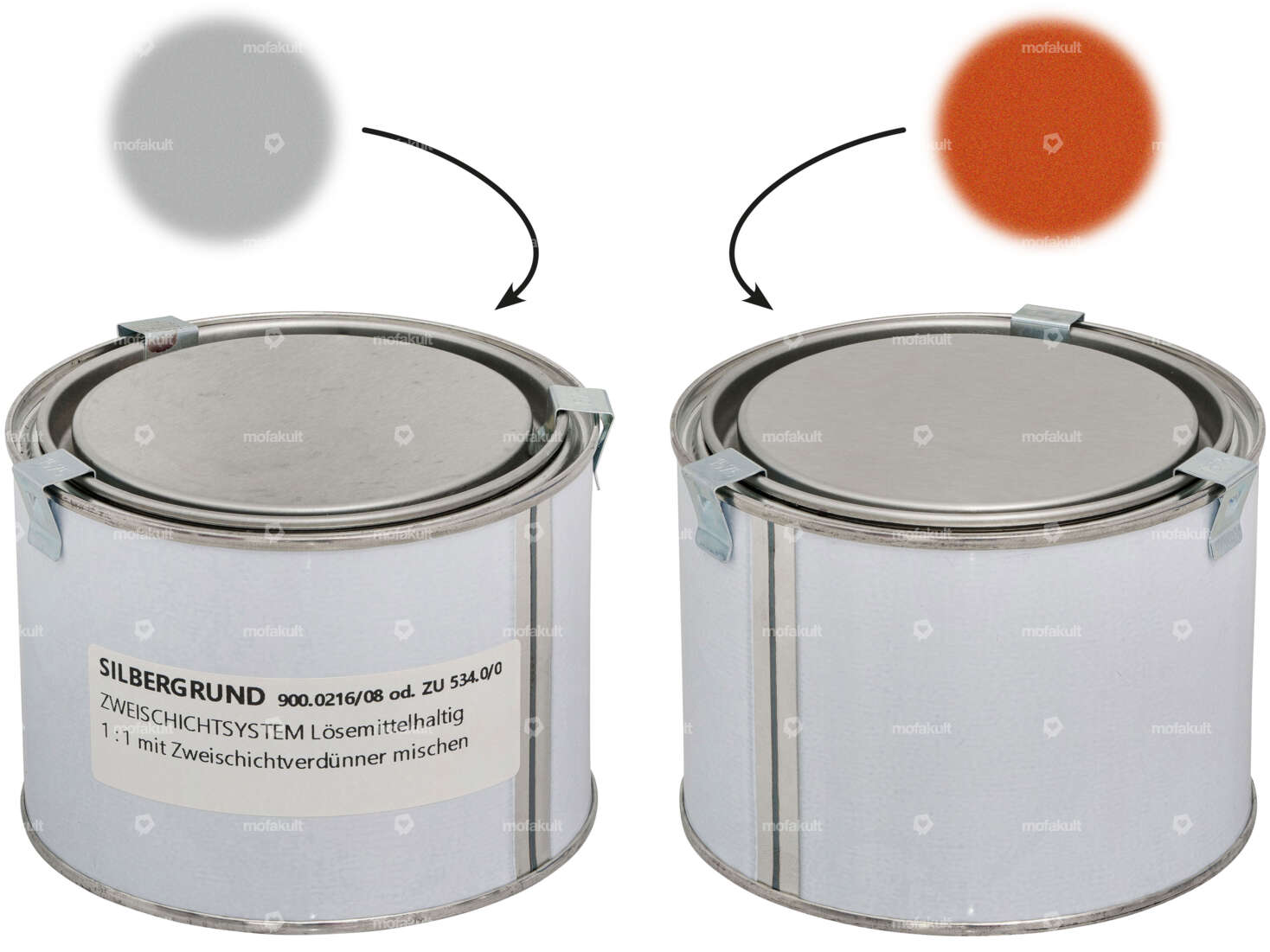

The set contains 400 ml silver base (reproduced using the original sample) and 400 ml copper-orange (glaze), the mixing ratio of the glaze is 1:1 and results in 0.8 l ready to spray.
The mixing ratio of the silver base is also 1:1.8 l ready to spray.
The mixing ratio for the silver primer is also 1:1.
It is essential to use two-coat thinner (BC thinner / basecoat thinner).
After the moped parts have been prepared as usual, they are painted with the silver primer to cover them. After a flash-off time of approx. 30 minutes, apply two or three even coats (depending on the thickness of the coat) of the copper orange glaze. As the amount of glaze applied can change the color tone, it is recommended to create a color sample in advance and then paint the moped using the same system!
Painting with 2-component clearcoat after another 30 minutes is mandatory. However, this is not included in the set.
The set includes the following fixed parts:
Details
| Manufacturer | Puch |
| Contents [ml] | 800 ml |
| Color | copper-colored, orange |
Suitable for the following models
| Puch |
