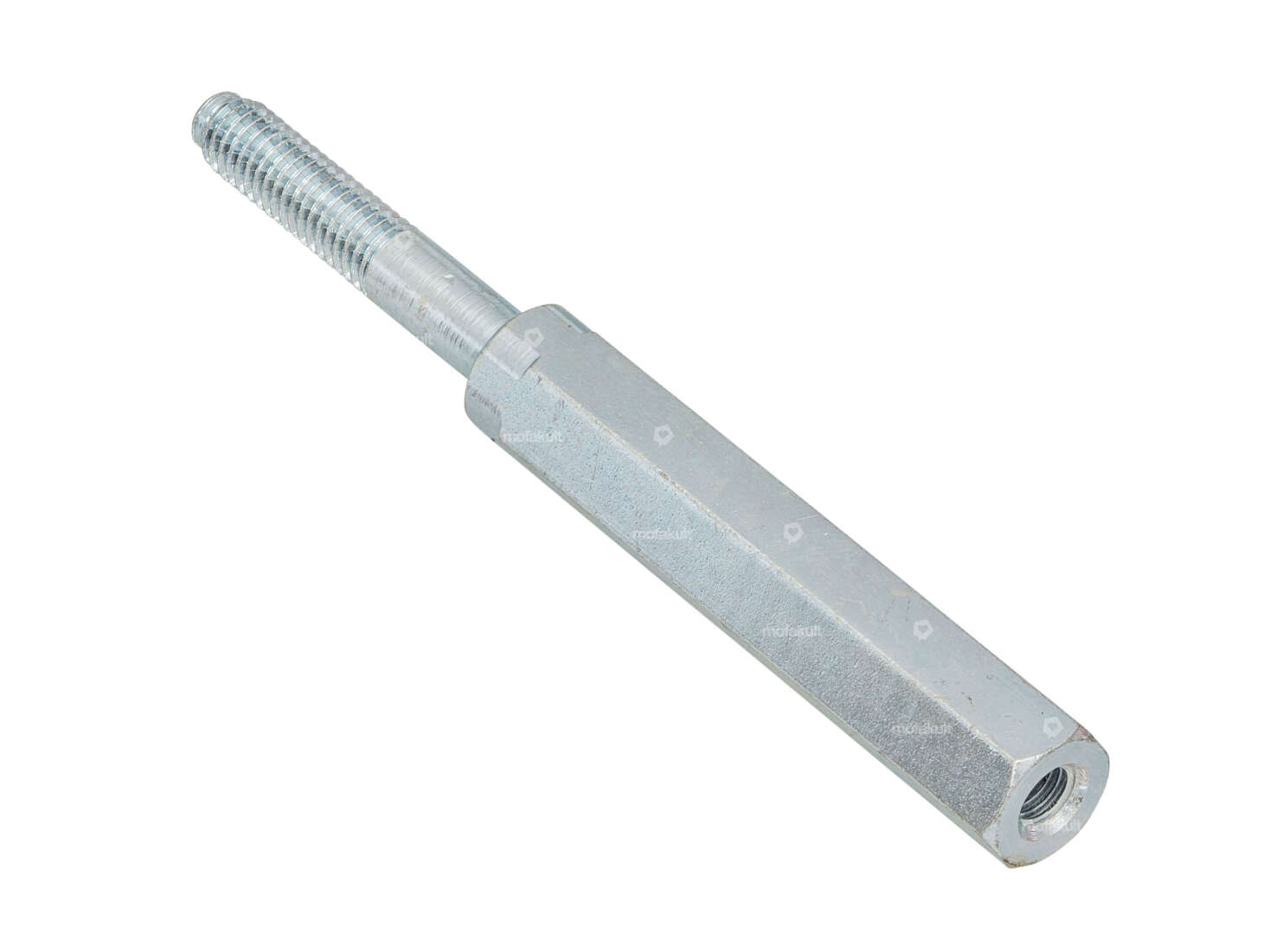

Bolt for engine cover on your Puch DS50 / VZ50M / MS50 / VS50 / MV50 / X30 / X40 / X50 moped / small motorcycle.
The bolt can also be used universally as a spacer bolt.
Total length: 90 mm
Thread length with shaft: 35 mm
External thread: M6
Internal thread: M5
Wrench width (SW) hexagon: 10 mm
Original Puch spare part number: 350.4.10.030.1
Details
Thread length | 35 mm |
Thread type | M6x1 (standard thread), M5x0.8 (standard thread) |
Total length | 90 mm |
Drive | External hexagon |
Screw head | Hexagon |
Width across flats SW | 10 mm |
Suitable for the following models
Puch | 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
