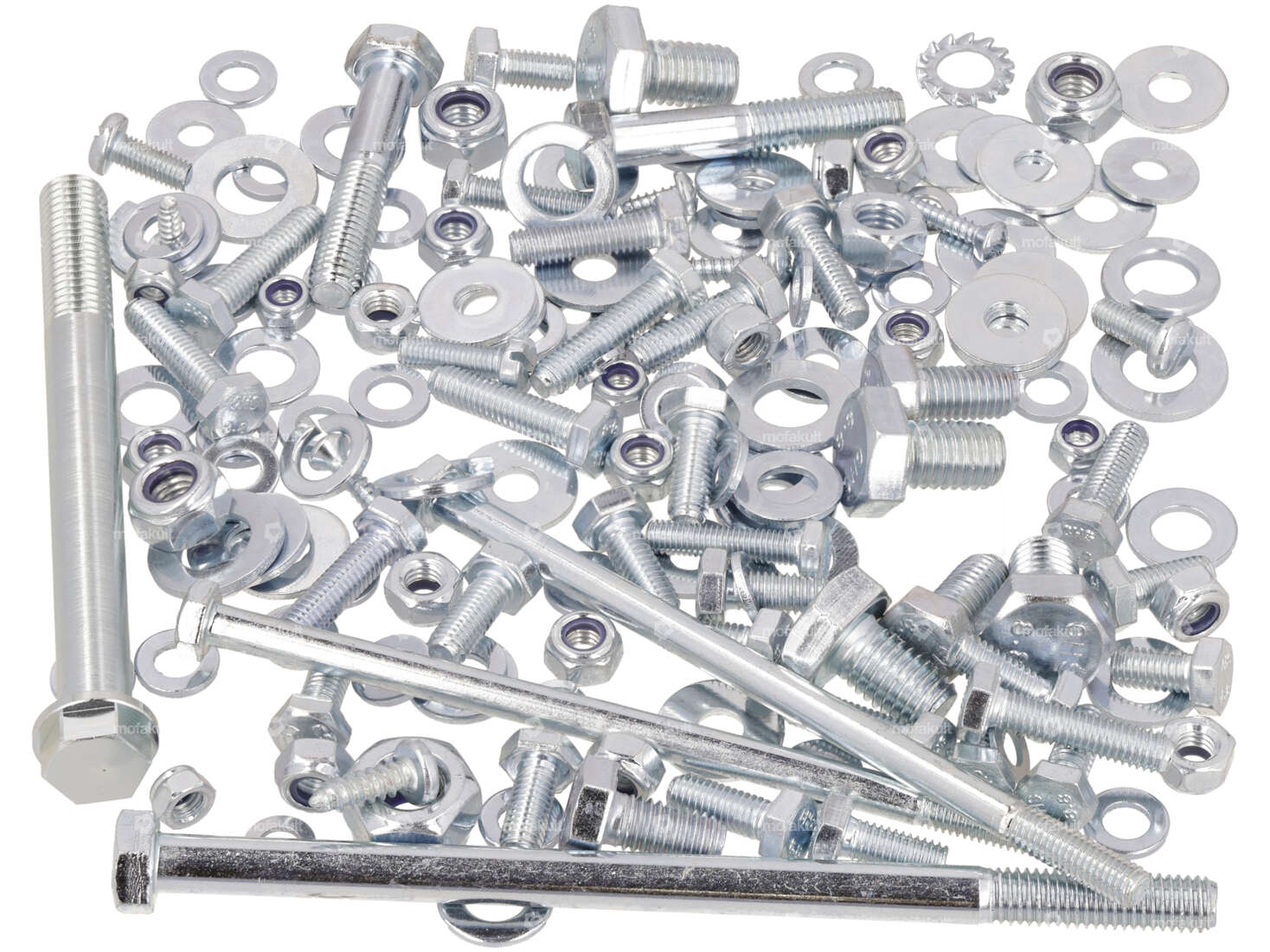

Complete screw set for the frame of your Piaggio Ciao PX or C24 moped / moped.
The PX is the model with round seat post and rear light on the luggage carrier. The C24 can be recognized by the sprung, square seat post and the rear light on the luggage carrier.
The screw set consists of galvanized steel screws.
A detailed list with the affiliation of the corresponding screws is included.
The following areas are covered:
- Headlight
- Fork swing arms
- Front and rear mudguards
- Cable duct under tank
- Engine mounting
- Zünd coil
- Splash guard under carburettor
- Pump holder under side guard
- Footboard holder and footboard
- Saddle and suspension
- Equipmentand struts and swing arm
- Pannier clamp and luggage hooks
- Return light on luggage
- Exhaust
- Chain tensioner
- Rear wheel hub and gearbox
- Transmission Gearbox
- Number plate or holder
Note: As the bolt set is designed for two different model series, individual bolts are not required and will remain unused.
Parts such as spacers and rubber buffers for the mudguard can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | blue galvanized |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao |
