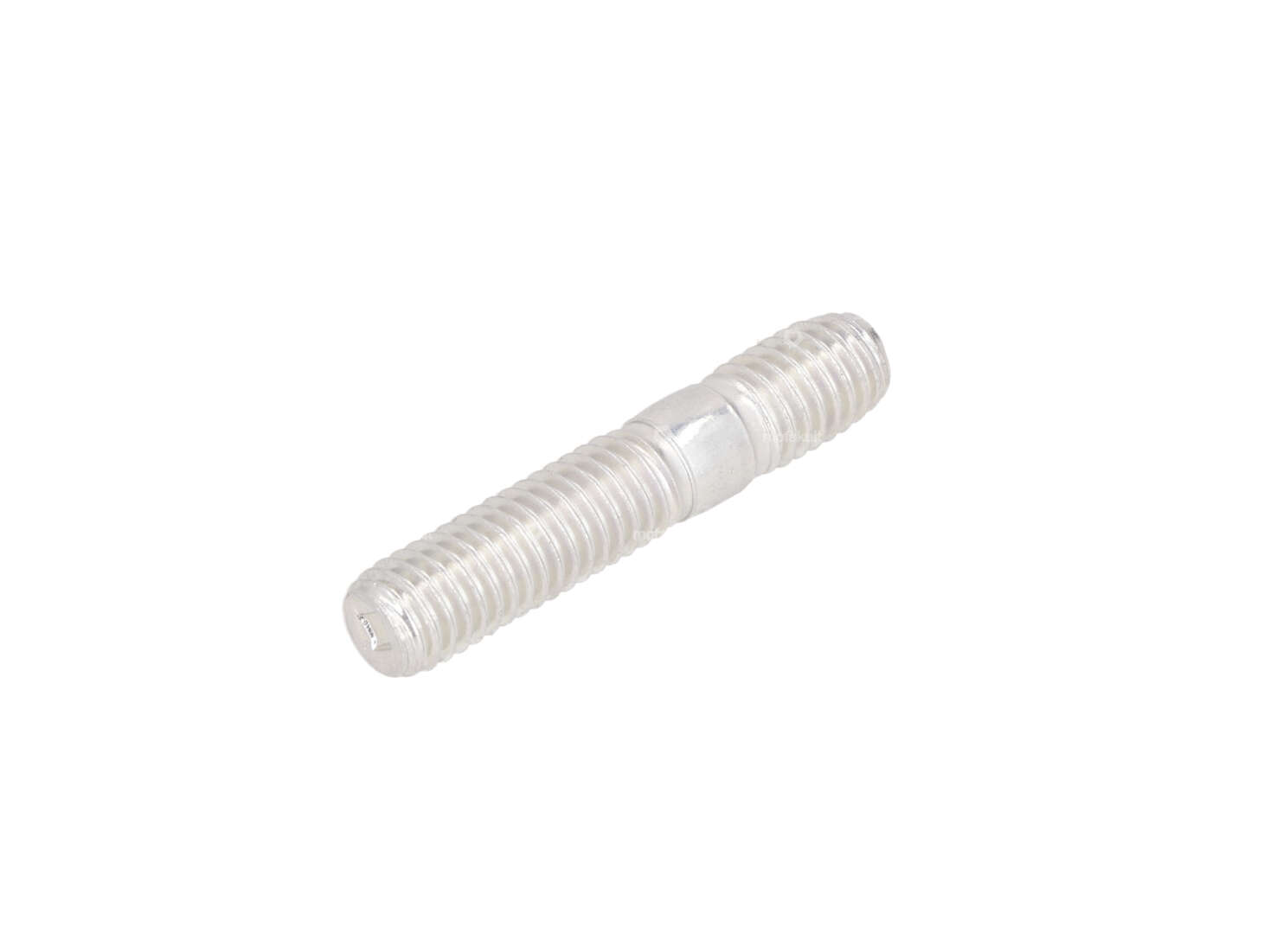

swiing® revival stud bolt inlet M5x26 mm galvanized (strength 10.9) | Sachs (A1474)

Inlet gasket (32 mm hole spacing) Oil paper 0.45 mm

Material: Oiled paper · Place of use: Admission · Thickness: 0.45 mm · Ø outlet inside: 14.5 mm · Hole spacing inlet: 32 mm

Inlet seal Sachs 50/3 for 17 mm connection piece (5.5 mm)

Place of use: Admission · Thickness: 5.5 mm · Hole spacing inlet: 30 mm

Stop nut M5 Inox

Strength class: A2-70 · Material: Chrome steel (stainless steel) · Material: Chrome steel (stainless steel) · Material: Chrome steel (stainless steel) · Material: Chrome steel (stainless steel) · Material: Chrome steel (stainless steel) · Material: Chrome steel (stainless steel) · Material: Chrome steel (stainless steel) · Drive: External hexagon · Drive: External hexagon · Drive: External hexagon · Drive: External hexagon · Drive: External hexagon · Drive: External hexagon · Drive: External hexagon · Thread type: M10x1.5 (standard thread) · Thread type: M10x1.5 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M7x1 (standard thread) · Thread type: M7x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Thread type: M8x1.25 (standard thread) · Nut type: Self-securing nut · Nut type: Self-securing nut · Nut type: Self-securing nut · Nut type: Self-securing nut · Nut type: Self-securing nut · Nut type: Self-securing nut · Nut type: Self-securing nut · Thread depth: 5 mm · Height: 7.3 mm · Width across flats SW: 11 mm

Serrated lock washer M5 galvanized

Material: Steel · Surface: blue galvanized · Thickness: 2 mm · Ø inside: 4.5 mm · Ø inside: 5.5 mm · Ø inside: 6.35 mm · Ø inside: 7.4 mm · Ø inside: 10.8 mm · Ø inside: 12.8 mm · Thread size: M10 · Thread size: M12 · Thread size: M4 · Thread size: M5 · Thread size: M6 · Thread size: M7 · Thread size: M8 · Nominal diameter (thread): 4 mm · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 7 mm · Nominal diameter (thread): 8 mm · Ø outside: 8 mm · Ø outside: 9.9 mm · Nominal diameter (thread): 10 mm · Ø outside: 10.65 mm · Nominal diameter (thread): 12 mm · Ø outside: 12.5 mm · Ø outside: 14.85 mm · Ø outside: 17.65 mm · Ø outside: 20 mm

swiing® revival inlet seal 5.5 mm Bing 13 mm | Sachs 50/3

Place of use: Admission · Material: Plastic · Material: Sealing paper · Area of application: Standard · Manufacturer: swiing® revival parts · Ø screw holder: 5.2 mm · Thickness: 5.9 mm · Hole spacing inlet: 31 mm

Flange nut M5 galvanized (10 strength)

Pony spare part no.: A1501 · Drive: External hexagon · Nut type: Flange nut · Thread type: M5x0.8 (standard thread) · Material: Steel · Surface: blue galvanized · Height: 5 mm · Width across flats SW: 8 mm · Strength class: 10 · Sachs spare part no.: 0242 024 104

Meteor piston 38 mm | Sachs 50/2, 503 (A2772)

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Pony spare part no.: A2772 · Pony spare part no.: A4358 · Sachs spare part no.: 0286 377 010 · Sachs spare part no.: 0286 378 005

swiing® revival cylinder base gasket 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.5 mm · Hole pattern [mm]: 40.5 x 51

32 mm copper ring 30.6/37.8 flame tube | Sachs

Ø inside: 30.6 mm · Ø outside: 37.8 mm · Material: Copper

Flange gasket for Sachs 50/2 connecting piece

Place of use: Admission · Thickness: 5 mm · Ø inside: 11.8 mm · Hole spacing inlet: 31 mm · Pony spare part no.: A1823 · Sachs spare part no.: 0250 085 000

Inlet gasket 2.6 mm Bing 17 mm | Sachs 50/3

Place of use: Admission · Thickness: 2.6 mm · Hole spacing inlet: 30 mm

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Ø piston pin (B): 12 mm

swiing 41 mm cylinder kit | Sachs 50/3, 50/4 LKH (square inlet)

Material: Gray cast iron · Thread inlet: M5x0.8 (standard thread) · Thread outlet: MF40x1.5 (fine pitch thread) · Camouflaged: No · Area of application: Tuning · Outlet type: Union nut · Surface: sandblasted · Manufacturer: swiing · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing inlet: 31 mm · Nominal diameter: 41 mm · Crankshaft stroke: 42 mm · Hole pattern [mm]: 51 x 40 / 37 x 37 · Displacement: 55 ccm

BAD ASS 38 mm cylinder kit, slotted | Sachs 50/2 (CH)

Manufacturer: BAD ASS · Material: Gray cast iron · Camouflaged: Yes · Surface: sandblasted · Displacement: 50 ccm · Nominal diameter: 38 mm · Crankshaft stroke: 42 mm · Hole spacing inlet: 31 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Standard · Ø piston pin (B): 12 mm · Hole pattern [mm]: 60 x 40 / 37 x 37 · Outlet type: Union nut · Number of fixing points: 4 pcs · Thread outlet: M35x2 (standard thread) · Alternative version of the Pony Spare part no.: A2539 · Alternative version of Sachs spare part no.: 0286 114 215
