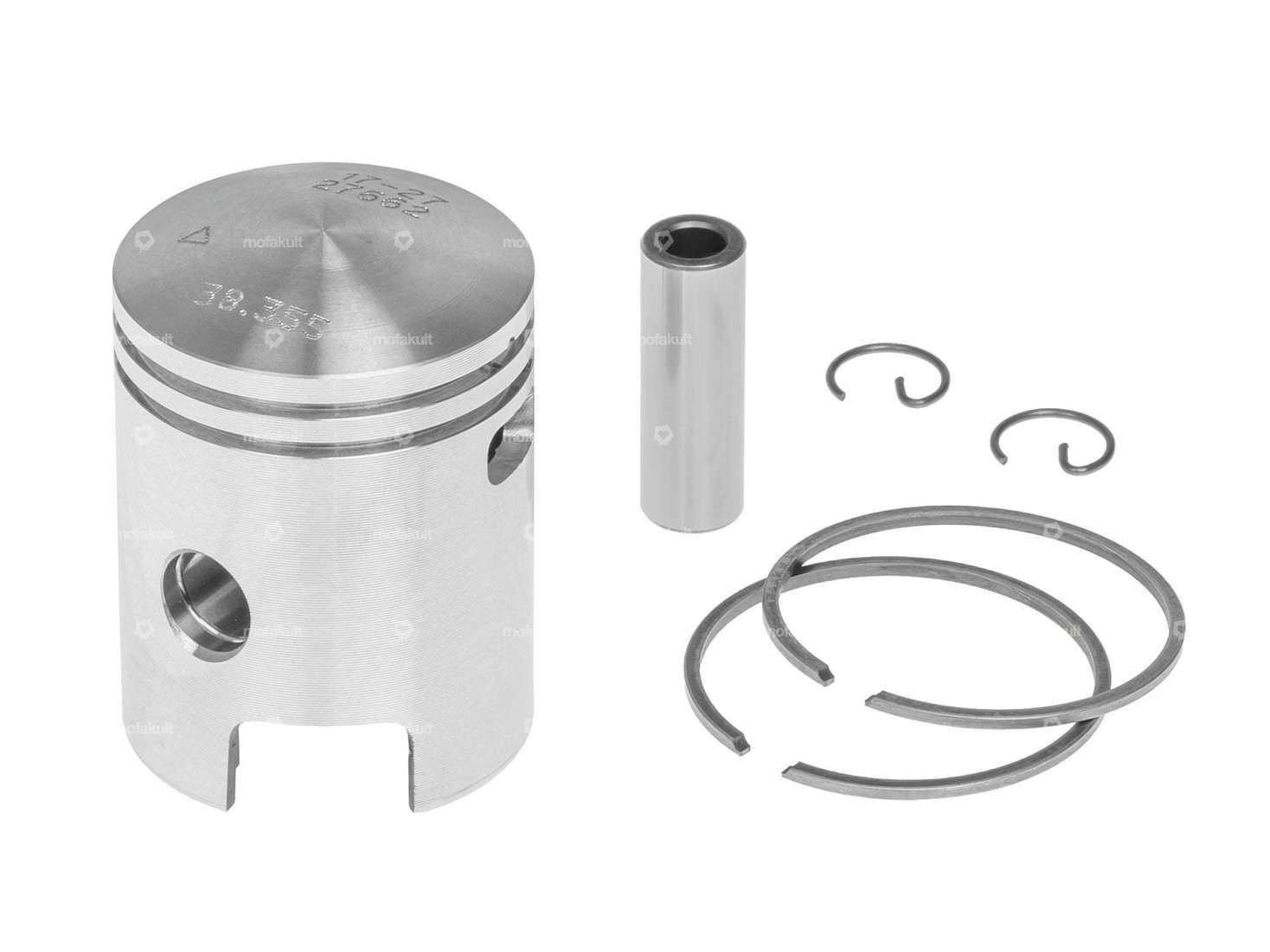

38.4 mm piston with two 1.5 mm rectangular piston rings with flank lock (FS) for Piaggio mopeds / mopeds with the Athena cylinder kits for Piaggio.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their piston rods and locking types on the legend in the images.
The piston kit is used for bored and honed cylinders.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Nominal diameter | 38.4 mm |
| Ø outside piston (A) | 38.32 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 26.3 mm |
| Curvature (D) | 3.9 mm |
| Total piston height (E) | 51.83 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Width across flats SW: 10 mm · Width across flats SW: 17 mm · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs
CHF 19.90
CHF 29.90

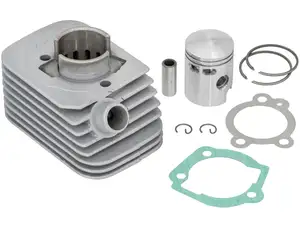

Athena 38.4 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Number of fixing points: 3 pcs · Manufacturer: Athena · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Nominal diameter: 38.4 mm · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Decompressor: Yes · Outlet type: clamped
CHF 159.90
Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.355 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.85 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm
CHF 56.90
