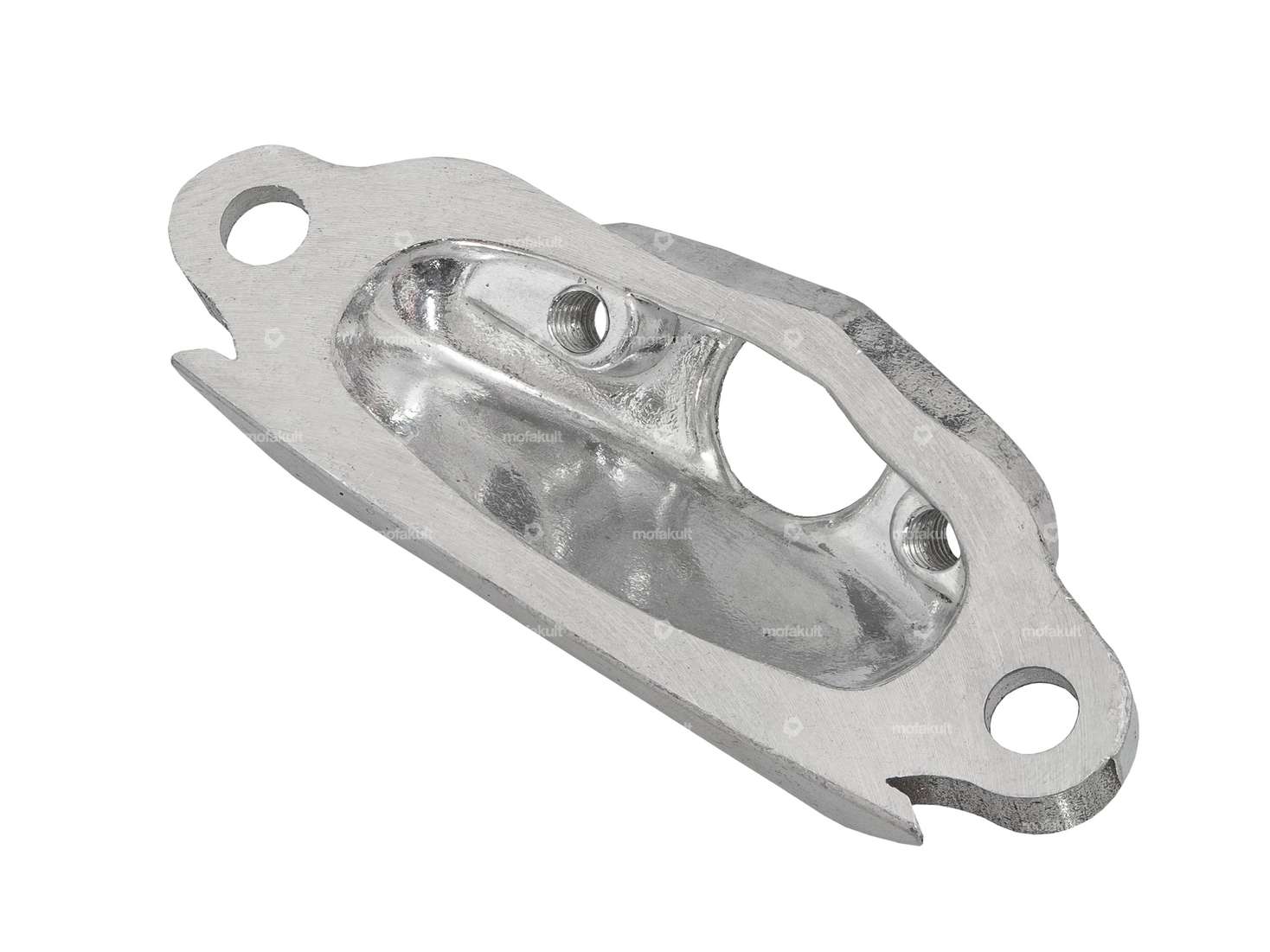

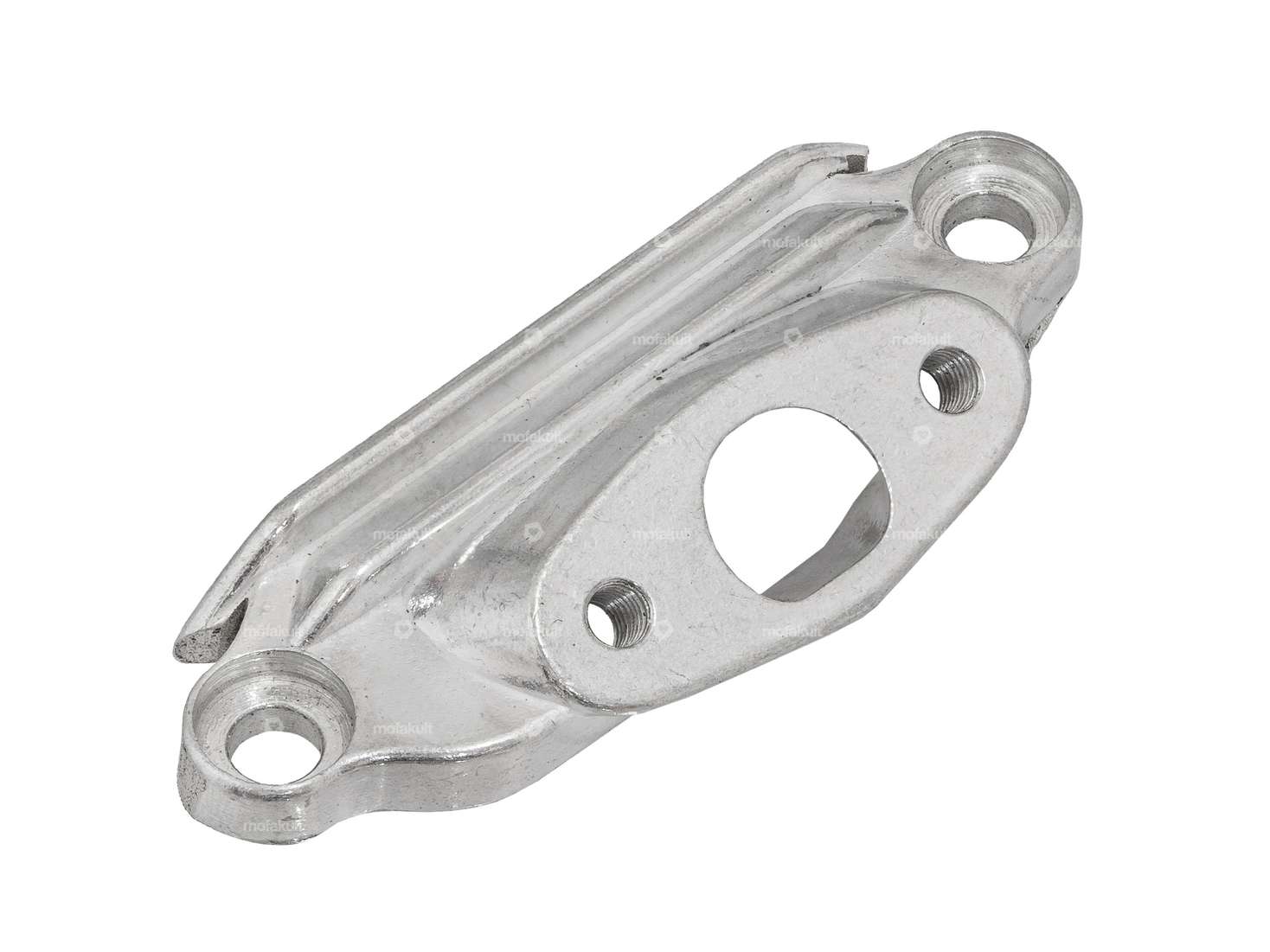

Reproduction diaphragm block made of aluminum with original 12 mm intake window for Sachs 502 & 50/2, 50/3, 50/4 mopeds
We recommend gluing the stud bolts of the diaphragm flange with Loctite threadlocker.
Hole spacing cylinder mount: 67 mm
Hole spacing stud bolt thread: 31 mm
Post bolt thread: M5
Corresponding attachments such as Loctite, stud bolts, seals, diaphragm insert etc. can be found in the accessories section.
Original Sachs spare part number: A2621 / 0286 210 001
Details
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Hole spacing | 67 mm, 31 mm |
| Material | Aluminum |
| Number of flaps | 2 pcs |
| Thread type | M5x0.8 (standard thread) |
| Ø inside | 12 mm |
| Area of application | Standard |
| Pony spare part no. | A2621 |
| Sachs spare part no. | 0286 210 001 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
