For: Puch

17960

Piston 43.7 mm Hero oversize | Puch

Home
| Motor
| Cylinder
| Piston
CHF 59.90

Incl. VAT, plus shipping costs

in stock

Only 1 piece left.

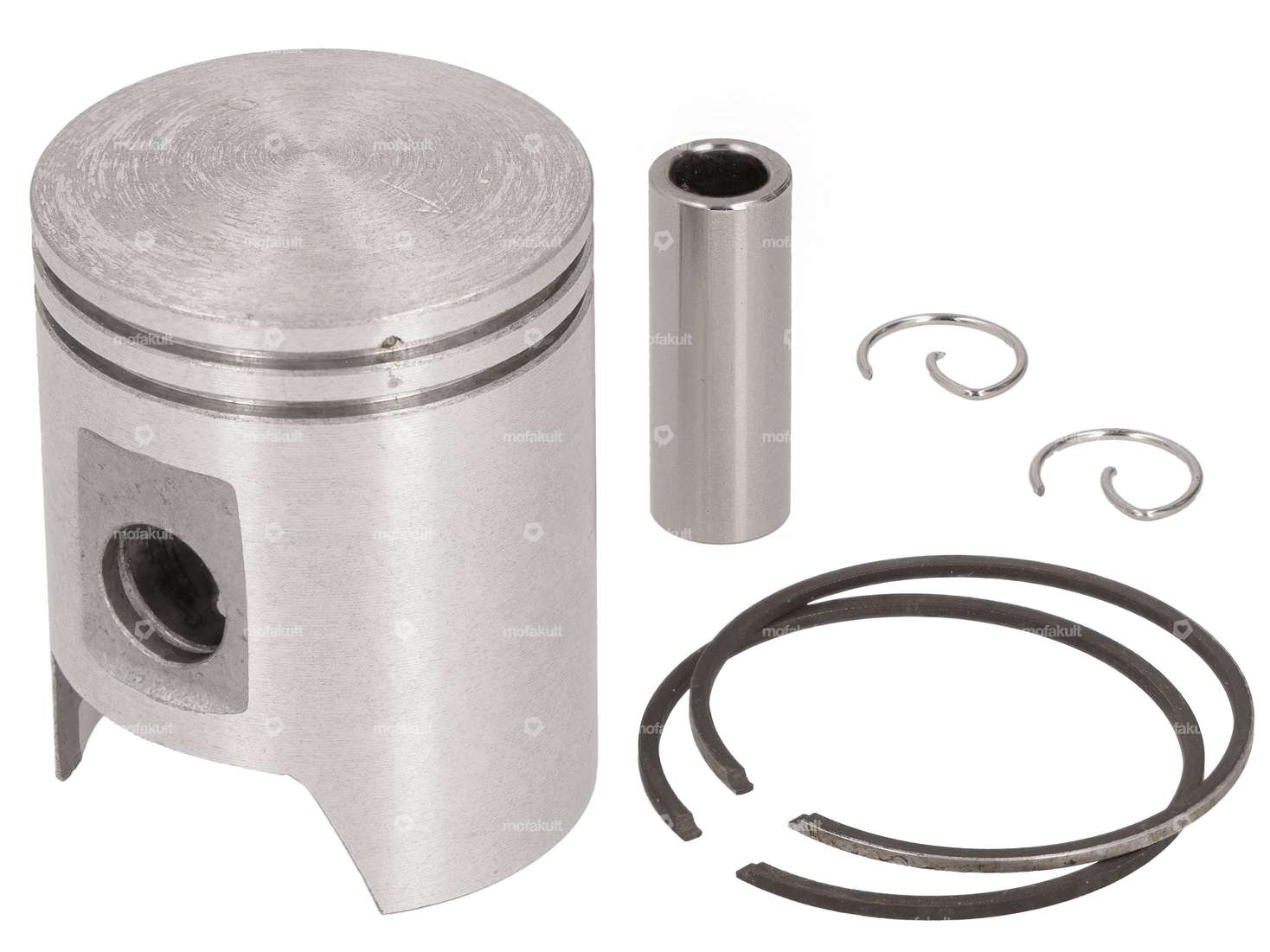

43.70 mm &uuuml;mass piston with two pieces of 1.5 mm rectangular piston ring with flank lock (FS) for the Hero cylinder kit for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.

The piston kit is used for bored and honed cylinders.

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tools, piston rings, piston pin locks etc. in the accessories section.

Details

Nominal diameter43.5 mm
Ø outside piston (A)43.7 mm
Compression height (C)27.5 mm
Curvature (D)2.7 mm
Total piston height (E)57.2 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Weight97 g

Suitable for the following models

Puch

E50

ZA50 (Fahrtwindgekühlt)

Z50 (X30 Sport)
