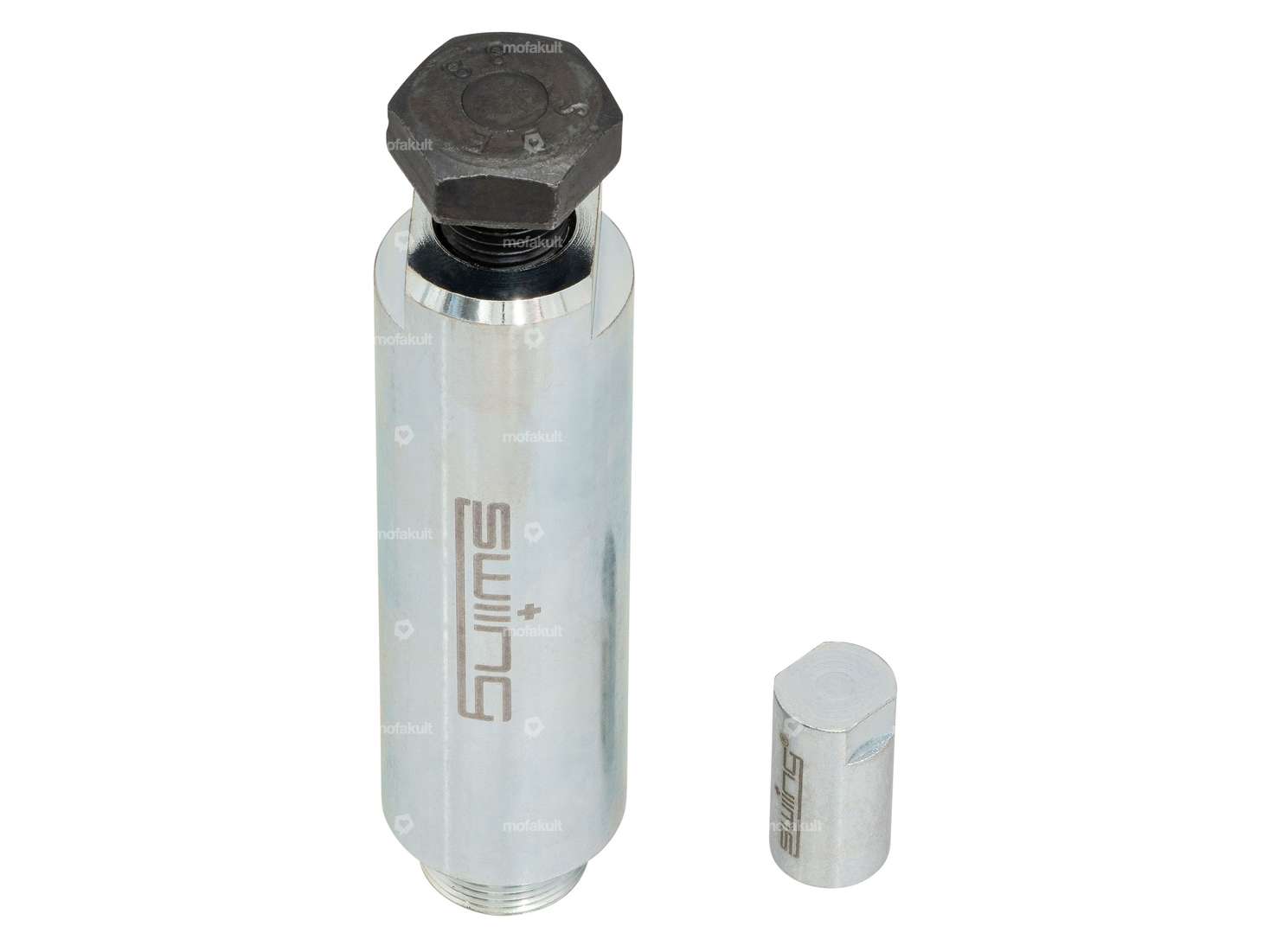

Pole wheel puller suitable for all Piaggio mopeds such as Ciao, Si, Bravo and Boxer.
Very high-quality flywheel puller, which shows no signs of weakness on the threads even after countless applications.
Function:

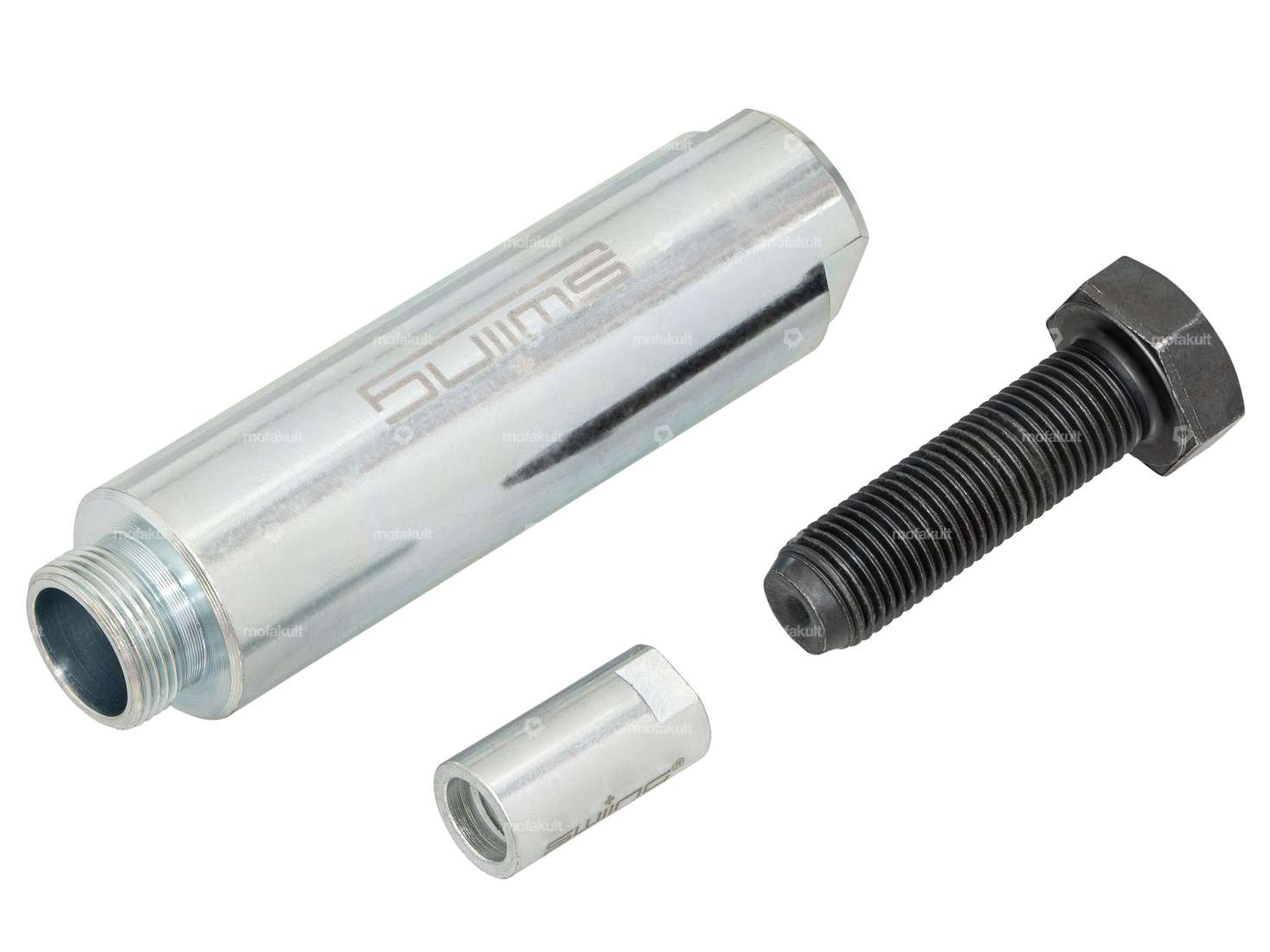

- The small sleeve is screwed onto the shaft of the crankshaft. This serves to protect the crankshaft thread.
- The special tool with M17x1 thread is screwed onto the magnet wheel.
- Screw in the screw from the puller using a 17 mm fork wrench until the timing gear loosens.
Parts to overhaul your ignition can be found in the accessories section.
Exclusive product for the highest demands of the quality brand swiing®.
Details
| Width across flats (trigger) | 18 mm, 10 mm |
| Width across flats Screw | 19 mm |
| Manufacturer | swiing® ingenious parts |
| Area of application | (Dis)assembly tool |
| Material | Steel |
| Surface | blue galvanized, blackened |
| Diameter | 24 mm, 12 mm |
| Thread type | MF17x1 (fine pitch thread), MF12x1.5 (fine pitch thread) |
| Total length | 100 mm |
| Number of components | 2 pcs |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
